2- OmniPCX Office Architecture

Racks

- Racks 1, 2 & 3                                                                                                                  2-2

Boards

- CPUs, CoCPUs, LAN switches, Trunk & Line boards                                              2-3

Daughterboards

- Daughterboards on processing units (CPU)                                                          2-5

- Daughterboards on co-processing units (CoCPU)                                             2-6

Features and figures

- System General maximum limits                                                                                2-7

- Detailed limits                                                                                                                  2-9


Racks



Rack 1

3 slots:

§         CPU slot is dedicated

§         2 universal slots (except SLIT16)

Rack 2

6 slots:

§         CPU slot is dedicated

§         5 universal slots

Rack 3

9 slots:

§         CPU slot is dedicated

§         4 universal slots

§         The 4 slots enclosed accept all the boards except UAI16 and MIX board.

The CPU of the main module manages the other modules. There is only one CPU per system.

The system can be expanded by aAdding up to 2 modulesadditional racks can expand the system.

Any combination is possible .

e.g. Rack 3+ Rack 2 , or

            Rack 2+ Rack 1 or…



Boards

The boards of OmniPCX Office are highly modular for a made-to-measure offer.

CPU

Voice

Only 1 per system

CPUe

Internet Access and Voice mail with 6 and more ports

Only 1 per system



CoCPU

VoIP Co-processing unit

Up to 6 per system

CoCPU@

Co-processing unit for Internet (Proxy, cache), e-mail, VPN, connection to ADSL and router for LAN-LAN routing

Only 1 per system

MEX

System expansion board, one per additional module

Connected to the CPU by means of the HSL link

LANX 8/16

Ethernet 10/100 base T Lanswitch board

Exists for 8 and 16 ports

The features of the boards can be enhanced associating other boards and daughter boards.



Boards

BRA 2/4/8

Trunk board: ISDN access TO

Modularity : 2/4/8

PRA-T2



PRA

Trunk board: T2

T1 (Taiwan, Hong-Kong)

DLT2

DASS2 (UK)

ATA 2/4

Trunk board: Analog trunk access

Power fail transfer: trunk line to analog set

UAI 4/8/16

Line board: Reflexes interface board

Modularity: 4/8/16

SLI 4/8/16

Line board: Analog interface board

Modularity: 4/8/16

MIX

Line and trunk board:

2T0/4UA/4Z

4T0/4UA/8Z

4T0/8UA/4Z

Line board:

4UA/4Z

4UA/8Z

8UA/4Z



Daughterboards

Daughterboards on Processing units (CPU)

XMEM 64

Memory expansion either for voice services or internet applications

HSL1 or 2

Multi-module inter-connection

AFU

Connections for Auxiliaries functions (MOH (audio in/out, loop back, mute), doorphone, alarmExternal MoH, Doorphone, Alarm )

Voice Hard-Disk

Memory expansion for enhanced voice services (above 80mn to 200 hours voice mail storage, full featured automated attendant, audiotext, Record on line, …)

Shared voice & data Hard-Disk

Only in e-XS package

Memory expansion shared between voice service & Internet applications (Proxy/Cache server, e-mail server).

NWill not be sold in stand alone, only included in OmniPCX Office  e-XS package

CPU and CPUe mechanical outfit








Daughterboards

Daughterboards on CoProcessing units (CoCPU)

SlanX4

CPU LANswitch to inter-connect the Processing unit and the Co-processing units ( up to two )

Data Hard-Disk

Only on CoCPU@

Memory expansion for Internet services (Proxy/Cache server, e-mail server)- pluggable only on CoCPU@.


Ethernet connectivity (WAN)

Only on CoCPU@

DSL modem connection or router for LAN-LAN routing.

VoIP

Only on CoCPU

Voice over IP resources (IP channels) - Modularity:  4, 8, 16 IP channels pluggable on CoCPU.

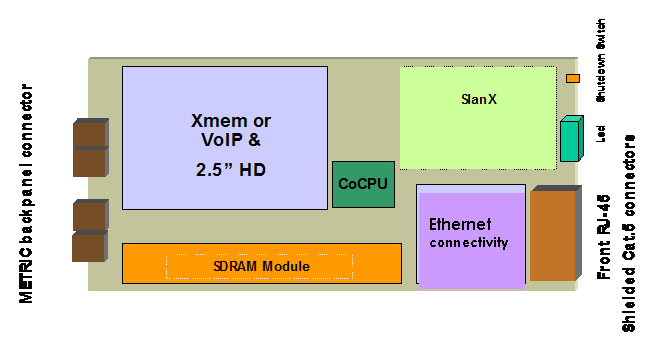

CoCPU and CoCPU@ mechanical outfit









Features & figures

General limits

System

Maximum limitslimits



Module

Up to 3 modules and all combinations are possible



Total number of slots including the CPU and MEX board

27



Free universal slots

24



Co-processing CPU (CoCPU) of which 1 CoCPU@ max per system

6



Co-processing CPU ( CoCPU)/ LANswitch board

6 CoCPU + 1LANX16 + 2 LANX8

or 5 CoCPU + 2 LANX16 + 2 LANX8

or 4 CoCPU + 2 LANX16 + 3 LANX8

or 3 CoCPU + 3 LANX16 + 3 LANX8

or 2 CoCPU + 4 LANX16 + 1 LANX8

or 1 CoCPU + 5 LANX16 + 1 LANX8

or 6 LANX16



DSP IP channels on CoCPU

96




Hard Disk

2



Hard Disk capacity

6.5 Gbytesbytes



Communication ports

Maximum limits



User ports (Reflexes + Analog)

200



Multi-Reflexes Hubs

18



LANswitch boards

3 LANX16 + 3LANX8 6 LANX16



Free LANswitch port (1)

6084



Analog trunks (2) (NDDI-DDI-TieLine)

72



Primary Rate Access

9



Basic Rate Access

12



IP trunks

120



Total Trunks

120



Terminals & workplace

Maximum limits



DSubscriber directory numbers (3)

250



Reflexes + Analog sets

236



Reflexes terminals

236



Analog sets

196



IP subscribers

VoIP users  (e-Reflexes + PIMphony IP)

200



H323 PC client

100150



PIMphony clients with embedded CTI server ( including IP PIMphony Media) (4)

25



CSTA sessions

28



CSTA monitoring

208



Reflexes options



Add-on modules (max 2 per port)

136




Plugwares SO, V24 metering, Z

48



 Multiple EDN per S0

9864



Plugware V24 metering

1





Features & figures

Mobility

Maximum limits

IBS (remote feeding)

60


IBS (local feeding)

199

Mobile Reflexes plus DECT plugware (5)Mobile Reflexes

23549

Call serverServer

Maximum limits

Voice mail ports

From 2 to 8

Voice mail storage

From 20 min to 80 min

Voice mail storage with Hard Disk

Up to 200 hours

Greetings

From 4 to 8

Languages

From 2 to 4

Directory entries

3000

Abbreviated numbers

2200

System Music on Hold

16 sec

Customizable Music on Hold

Up to 2 min

Music on Hold with Hard Disk

Up to 10 min

ARS entries

500

Metering tickets

Up to 1000 tickets

NMC tickets with Hard Disk

Up to 30000 tickets

Groups (Hunting/Broadcasting/Pick-up)

50 with up to 32 subscribers in each group

Attendant group

8 with up to 8 attendants in each group

Conference

3 simultaneous conferences

e-serverServer

Shared Internet access

ISDN

External ADSL modem or router (62)

Up to 128kbps (2 B channels)

Up to 2 Mbps

Internet users

200

Simultaneous Internet access

Depends on available bandwidth

(ex: up to 20 on a 128 kbps link)

Web caching capacities (64)

1.5 Go


E-mail boxes (64)

200

E-mail storage capacities (64)

3.75 Go

Simultaneous PPTP remote worker

5

Lan-to-Lan networking (IPsec)

2

(1)  2 LAN ports are used:

-1 to interconnect the LAN to the CPU

-1 uplink reserved to connect an external LANswitch

(2)  Available on Release 1.1

(3)  Subscriber numbers include all terminals and ,the virtual users, 14 auxiliary ports (VMU, Internet acces, Remote access)

(4)  IP PIMphony Media is managed only within embedded CTI server so maximum IP PIMphony media session is 25

(5)  Be aware that radio base station dimensioning is adapted to mobile sets number

(4)(6)   Hard Disk needed




Features & figures


This part is a summary of the maximum capacities depending on the chosen solution of Alcatel OmniPCX Office commercial offer.

For more details on the solution you can refer to the generic commercial catalogue of Alcatel OmniPCX Office.

Solution

OmniPCX Office S and e-S

OmniPCX Office

M and e-M

OmniPCX Office

L and e-L

OmniPCX Office

XL ande-XL

Module

Rack 1

Rack 2

Rack 3

Rack 3 + expansion Rack 3

Total number of slots including the CPU and MEX boards

3

6

9

18

Free slots

2

5

8

16

Co-processing CPU (CoCPU) of which 1 CoCPU@ max per system

1

2

2

5

Co-processing CPU        ( CoCPU) / LANswitch board

1 CoCPU

or 1 LANX16

2 CoCPU

or 1 CoCPU + 1LANX16

or  1 LANX16 +

1 LANX8

2 CoCPU +

1 LANX8

or 1 CoCPU +

LANX16 +

1 LANX8

or 2 LANX 16

5CoCPU + 1LANX8

or 4 CoCPU +

1 LANX16 +

1 LANX8

or 3 CoCPU +

1 LANX16 +

2 LANX8

or 2 CoCPU +

2 LANX16+2LANX8

or 1 CoCPU +

3 LANX16 + 1 LANX8

or 4 LANX16

DSP channels on CoCPU

16

32

32

80

Hard Disk

1

2

2

2

Hard Disk capacity

6 Gbytes

6 Gbytes

6 Gbytes

6 Gbytes

Communication ports

OmniPCX Office S and e-S

OmniPCX Office



M and e-M

OmniPCX Office

L and e-L

OmniPCX Office

XL ande-XL

User ports (Reflexes + Analog)

28

48

96

192

Multi-Reflexes Hubs

6

6

6

12

LANswitch boards

1 LANX16

1LANX16 +1LANX8

2 LANX16

 4 LANX16

Free LANswitch port (1)

14

20

28

56

Analog trunks (2) (NDDI)

4

16

24

48

Primary Rate Access

1

3

3

6

Basic Rate Access

8

12

12

12

IP trunks

16

32

32

95

Total Trunks

30

90

120

120



Terminals & workplace

OmniPCX Office S and e-S

OmniPCX Office

M and e-M

OmniPCX Office

L and e-L

OmniPCX Office

XL ande-XL

Directory numbers (3)

250

250

250

250

Reflexes + Analog sets

28

60

96

192

Reflexes terminals

24

60

96

192

Analog sets

16

32

80

160

VoIP users (e-Reflexes + PIMphony IP)

30

79

79

200

H323 PC client

150

150

150

150

PIMphony clients with embedded CTI server (including IP PIMphony Media) (4)

25

25

25

25

CSTA sessions

28

28

28

28

CSTA monitoring

208

208

208

208

Reflexes options

Add-on modules (max 2 per port)

10

40

60

120

Plugwares SO, V24 , Z

8

16

32

48

Multiple EDN per S0

98

98

98

98

Plugware V24 metering

1

1

1

1

Mobility

OmniPCX Office S and e-S

OmniPCX Office

M and e-M

OmniPCX Office

L and e-L

OmniPCX Office

XL ande-XL

IBS (remote feeding)

4

8

20

40

IBS (local feeding)

23

47

95

191

Mobile Reflexes plus DECT plugware (5)

235

235

235

235

Call Server

Voice mail ports

From 2 to 8

From 2 to 8

From 2 to 8

From 2 to 8

Voice mail storage

From 20 min to 80 min

From 20 min to 80 min

From 20 min to 80 min

From 20 min to 80 min

Voice mail storage with Hard Disk

Up to 200 hours

Up to 200 hours

Up to 200 hours

Up to 200 hours

Greetings

From 4 to 8

From 4 to 8

From 4 to 8

From 4 to 8

Languages

From 2 to 4

From 2 to 4

From 2 to 4

From 2 to 4

Directory entries

3000

3000

3000

3000

Abbreviated numbers

2200

2200

2200

2200

System Music on Hold

16 sec

16 sec

16 sec

16 sec

Customizable Music on Hold

Up to 2 min

Up to 2 min

Up to 2 min

Up to 2 min

Music on Hold with Hard Disk

Up to 10 min

Up to 10 min

Up to 10 min

Up to 10 min

ARS entries

500

500

500

500

Metering tickets

Up to 1000 tickets

Up to 1000 tickets

Up to 1000 tickets

Up to 1000 tickets

NMC tickets with Hard Disk

Up to 30000 tickets

Up to 30000 tickets

Up to 30000 tickets

Up to 30000 tickets

Groups (Hunting/Broadcasting/Pick-up)

50 with up to 32 subscribers in each group

50 with up to 32 subscribers in each group

50 with up to 32 subscribers in each group

50 with up to 32 subscribers in each group



Attendant group

8 with up to 8 attendants in each group

8 with up to 8 attendants in each group

8 with up to 8 attendants in each group

8 with up to 8 attendants in each group

Conference

3 simultaneous conferences

3 simultaneous conferences

3 simultaneous conferences

3 simultaneous conferences

e-Server

Shared Internet access

ISDN

External ADSL modem or router (6)

Up to 128 kbps

Up to 2 Mbps

Up to 128 kbps

Up to 2 Mbps

Up to 128 kbps

Up to 2 Mbps

Up to 128 kbps

Up to 2 Mbps

Internet users

28

200

200

200

Simultaneous Internet access

Depends on available bandwidth

(ex: up to 20 on a 128 kbps link)

Depends on available

bandwidth

(ex: up to 20 on a 128 kbps link)

Depends on available bandwidth

(ex: up to 20 on a 128 kbps link)

Depends on

Available

 bandwidth

(ex: up to 20 on a 128 kbps link)

Web caching capacities (6)

500 Mbytes

1.5 Gbytes

1.5 Gbytes

1.5 Gbytes

E-mail boxes (6)

28

200

200

200

E-mail storage capacities (6)

2.2 Gbytes

3.7 Gbytes

3.7 Gbytes

3.7 Gbytes

Simultaneous PPTP remote worker

2

5

5

5

Lan-to-Lan networking (IPsec)

1

2

2

2

(1) 2 LAN ports are used:

-1 to interconnect the LAN to the CPU

-1 uplink reserved to connect an external LANswitch

(2) Available on Release 1.1

(3) Subscriber numbers include all terminals , virtual users, 14 auxiliary ports (VMU, Internet acces, Remote access)

(4) IP PIMphony Media is managed only within embedded CTI server so maximum IP PIMphony media session is 25

(5) Be aware that radio base station dimensioning is adapted to mobile sets number

(6) Hard Disk needed

DISTRIBUIE DOCUMENTUL

Comentarii


Vizualizari: 1260
Importanta: rank

Comenteaza documentul:

Te rugam sa te autentifici sau sa iti faci cont pentru a putea comenta

Creaza cont nou

Distribuie URL

Adauga cod HTML in site



Termeni si conditii de utilizare | Contact
© SCRIGROUP 2019. All rights reserved
