Overview

This mapping describes the relationship between UML and Oracle8 constructs as implemented in version 1.0 of the Rose/Oracle8 product.

The supported Use Cases for the Rose/Oracle8 product are:

·         Reverse Engineer Relational Schema to a Rose Model to aid the evolution to Oracle8 ORDBMS schema

·         Incremental Forward Engineering Oracle8 Object Relational Schemas from Rose Models

·         Incremental Reverse Engineer Oracle8 Object Relational Schemas into a Rose Model

·         Forward and Reverse Engineer Oracle8 with the assumption that one class in Rose represents one Oracle abstraction (ObjectType, Table, View, etc).

·         Creation of  Object Relational constructs to enrich an existing Oracle8 database

·         Visualization of existing relational databases and facilitation of the discovery and composition of existing business objects

1.     Rose to Oracle8 mapping

The basis of the Rose/Oracle8 product is the mapping of Rose modeling components to Oracle8 object extensions.  As a result, this section focuses on the definition of the requirements pertaining to the mapping of Rose components to Oracle8 schema elements.

Rose Construct

Oracle Construct

Description

Class

Object Type

Stereotype = ObjectType

Class

RelationalTable

Stereotype = RelationalTable

Class

ObjectTable

Stereotype = ObjectTable

Class

ObjectView

Stereotype = ObjectView

Class

VARRAY

Stereotype = VARRAY

Class

NestedTable

Stereotype = NestedTable

Class

RelationalView

Stereotype = RelationalView

Class

Sequence

Stereotype = Sequence

Attribute

Column Name for Table

The scalar type of the column is defined using two properties one for the scalar type and a second for the length or size of the column (if applicable).

Attribute

Attribute for an Object Type

Scalar or an Object Type.

Attribute

RelationalTable Index

The attribute Name is equal to the index name and the initial value of the attribute is a comma delimited set of column names for the index. The IsIndex property is set to True and if this Index is a PrimaryKey index the IsPrimaryKey property is also set to True.

Attribute

Object or Relational View Column

The attribute name is equal to the view column name or the view column alias if an alias is provided. If an alias is provided the initial value of the attribute is set equal to the fully qualified column name.

Operation

Object Type Function (has a return type)

Note: Overloading is Supported.

Operation

Object Type Procedure (no return type)

Operation

Trigger

The export control for these operations will be set to implementation to signify that these types of class methods are Triggers.

Uni-directional Association Role

Many See Figure 4 - Association Mapping

Inheritance

Many See Figure 5 - Inheritance Mapping

Stereotype of VARRAY on the Association between two Object Types, with the cardinality of the TO role corresponding to the size of the VARRAY.

VARRAY

CREATE TYPE nn as VARRAY (10) of some_other_type.

Component (Subprogram Specification)

Schema

StereoType = Schema

Physical Package

Database Domain

StereroType = DatabaseDomain

Logical Package

User Defined

Association Role Key

Indexes

See current DDL mapping.

Figure 1-High Level Rose to Oracle8 Mapping

1.1     Classes

A Class will map to one of the following Oracle8 constructs Object Type (formally Abstract Data Type), ObjectView,RelationalView,ObjectTable or RelationalTable which will be shown as a stereotype on the class.

The Oracle8 DDL will be generated if the Class specification has a stereotype set to one of the valid Oracle8 DDL stereotypes. (Note: the persistent value will be set automatically during code generation, syntax checking and reverse engineering for classes with these stereotypes)

1.2     Attributes

The Attributes of a Class will map to either attributes of an Object Type or to a  column in  Tables and Views.

The type can be a scalar data type or an Object Type. The Object Type must be included in the model in the form of a Class if complete DDL is to be generated. Additionally the attribute containment (by value or by reference) can be set in the attribute specification in order to specify REF Object Types or Columns.

Note: During reverse engineering the assumption is that an Association will be created between classes unless the attribute type is a scalar data type.

Scalar Type

Modifier

CHAR

NCHAR

(size)

VARCHAR

(size)

VARCHAR2

NVARCHAR2

(size)

NUMBER

blank or (p) or (p, scale)

DATE

LONG

RAW

(size)

LONG RAW

ROWSID

MLSLABEL

CLOB

NCLOB

BLOB

BFILE

Figure 2-Scalar Data Types

Object Type Attribute  Types

Modifier

CHAR

(size)

VARCHAR2

(size)

NUMBER

(p,s)

DECIMAL

(p,s)

INTEGER

SMALLINT

FLOAT

(p)

REAL

DOUBLE PRECISION

RAW

BLOB

CLOB

DATE

TABLE

REF

Figure 3-Datatypes for Object Types

1.3     Operations

The Operations of a Class will map to either Member functions or Member procedures of an Object Type and the access control can be set to either public or private.

1.4     Operation Parameters

The parameter name and type map to the current parameter and type for operations within Rose.

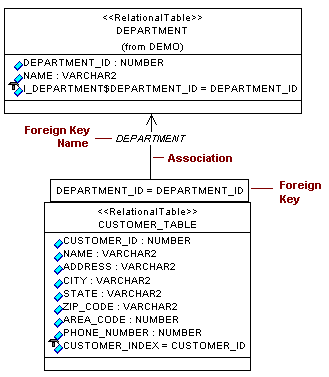

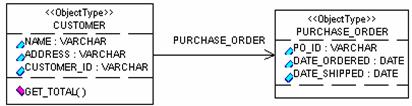

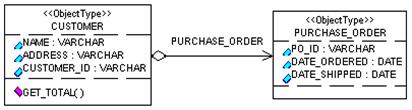

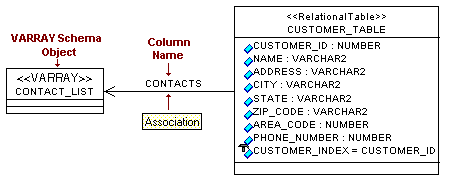

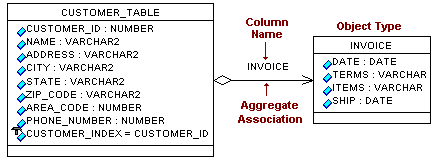

1.5     Association Relationships

Target

Supplier

Description

RelationalTable

RelationalTable

1.       An intermediate table to break up a many to many relation (No aggregation).

2.       A relation to a table that needs to be DELETE CASCADE.

3.       Link Classes = Same As 1

Note :  If the Primary Key on the target table is not equal to the Foreign Key of the target table an association is drawn to the Table referenced within the Foreign Key.

Object Type

NA

ObjectView or RelationalView

NA

ObjectTable

NA

Object Type

Object Type

1.       Aggregate Type By Value

2.       Aggregate Type By Reference

ObjectTable or RelationalTable

NA

ObjectView or RelationalView

NA

Figure 4 - Association Mapping

1.6     Inheritance

Child

Parent

Description

RelationalTable

RelationalTable

Formal subtype.

Note: If the Primary Key on the target table is equal to the Foreign Key of the target table and inheritance relation is drawn to the Table referenced within the Foreign Key.

Object Type

NA

View

NA

Object Type

Object Type

NA. Feature of Next Release..

Table

NA

View

NA

View

View

NA

Table

NA

Object Type

NA

Figure 5 - Inheritance Mapping

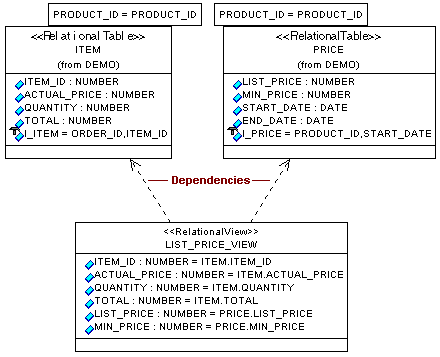

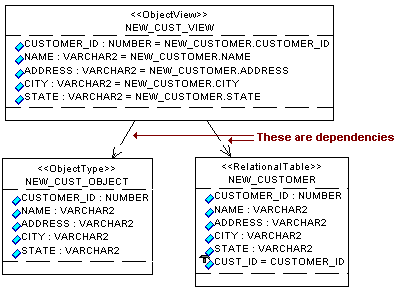

1.7     Dependency Relation

Target

Supplier

Description

RelationalView

RelationalView

Supplier based on FROM clause.

RelationalTable

Supplier based on FROM clause.

ObjectView

RelationalTable

Supplier based on FROM clause.

ObjectType

Supplier Type of ObjectView.

ObjectTable

SomeObjectType

Type of Object Table.

VARRAY

SomeObjectType

Type of VARRAY

NestedTable

SomeObjectType

Type of Nested Table

ObjectView

SomeObjectType

Type of ObjectView.

Figure 6-Dependency Relation Mapping

1.8     Component

Each ObjectType, View or Table can be assigned to one or more database schema’s where a schema is represented as a Component within Rose with the stereotype of Schema.

1.9     Physical Package

Each database schema belongs to a database domain where the database domain is represented as a Physical Package with a stereotype of DatabaseDomain.

2.     Oracle8 Stereotypes

Item

Stereotype

Notes

Class

ObjectType

ObjectView

ObjectTable

NestedTable

RelationalTable

RelationalView

VARRAY

Association

FK

ForeignKey

Component

Schema

Figure 7 Oracle8 Stereotypes

3.     Oracle8 Properties

Schema Generation Properties

Design-level properties (also called project properties) control aspects of code generation that apply to an entire model.

In addition, various model elements have their own unique sets of schema generation properties.  For example, class properties control aspects of schema generation for class elements that have stereotypes such as object type, relational table, object view, etc.

Schema Generation Properties for Rose/Oracle8 Projects

Model (or design-level) properties affect the entire Rose model.  The following table describes the schema generation properties, as well as any defined default values, for Rose/Oracle8 models.

Property

Type

Description

DDLScriptFilename

string

The name of the default DDL script file that is created when you generate a schema from a Rose model.

DropClause

Boolean

If true, generates a DROP statement before each appropriate schema object

PrimaryKeyColumnName

string

Suffix added to generated primary keys. Initial value is _ID.

PrimaryKeyColumnType

string

Defines the type and length of generated primary keys. The initial value is NUMBER(5,0)

SchemaNamePrefix

string

An optional naming standard that is added to the beginning of a component name for each generated schema. If blank, no prefix is added. Default is blank. Recommended value is S_

SchemaNameSuffix

string

An optional naming standard that is appended to the end of the component name for each generated schema. If blank, no suffix is appended. Default is blank. Recommended value is _S.

TableNamePrefix

string

An optional naming standard that is added to the beginning of the class name for each generated table. If blank, no prefix is added. The default prefix is blank. Recommended value is T_.

TableNameSuffix

string

An optional naming standard that is appended to the end of the class name for each generated table. If blank, no suffix is appended. The default prefix is blank. Recommended value is _T.

TypeNamePrefix

string

An optional naming standard that is added to the beginning of the class name for each generated object type. If blank, no prefix is added. The default is blank. Recommended value is O_.

TypeNameSuffix

string

An optional naming standard that is appended to the end of the class name for each generated object type. If blank, no suffix is appended. The default is blank. Recommended value is _O.

ViewNamePrefix

string

An optional naming standard that is added to the beginning of the class name for all generated object and relational views. If blank, no prefix is added. The default is blank. Recommended value is V_.

ViewNameSuffix

string

An optional naming standard that is appended to the end of the class name for all generated object and relational views. If blank, no suffix is appended. The default is blank. Recommended value is _V.

VarrayNamePrefix

string

An optional naming standard that is added to the beginning of the class name for each generated Varray. If blank, no prefix is added. The default is blank. Recommended value is VA_.

VarrayNameSuffix

string

An optional naming standard that is appended to the end of the class name for each generated Varray. If blank, no suffix is appended. The default is blank. Recommended value is _VA.

NestedTableNamePrefix

string

An optional naming standard that is added to the beginning of the class name for each generated nested table. If blank, no prefix is added. The default is blank. Recommended value is NT_.

NestedTableNameSuffixq

string

An optional naming standard that is appended to the end of the class name for each generated nested table. If blank, no suffix is appended. The default is blank. Recommended value is _NT.

ObjectTableNamePrefix

string

An optional naming standard that is added to the beginning of the class name for each generated object table. If blank, no prefix is added. The default is blank. Recommended value is OT_.

ObjectTableNameSuffix

string

An optional naming standard that is appended to the end of the class name for each generated object table. If blank, no suffix is appended. The default is blank. Recommended value is _OT.

IndexNamePrefix

string

An optional naming standard that is added to the beginning of the class name for each generated index. If blank, no prefix is added. The default is blank. Recommended value is I_.

AttributeNamePrefix

string

An optional naming standard that is added to the beginning of the attribute name for each generated attribute within an object type. If blank, no prefix is added. The default is blank. Recommended value is A_.

AttributeNameSuffix

string

An optional naming standard that is appended to the end of the attribute name for each generated attribute within an object type. If blank, no suffix is added. The default is blank. Recommended value is _A.

MemberNamePrefix

string

An optional naming standard that is added to the beginning of the operation name for each generated member within an object type. If blank, no prefix is added. The default is blank. Recommended value is M_.

MemberNameSuffix

string

An optional naming standard that is appended to the end of the operation name for each generated member within an object type. If blank, no suffix is added. The default is blank. Recommended value is _M.

Figure 8 Schema Generation Properties for Rose/Oracle8 Projects

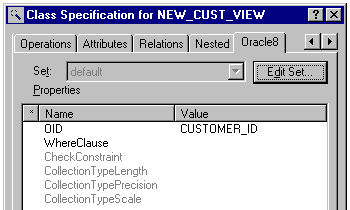

Schema Generation Properties for an Oracle8 Class

The following table describes the schema generation property for an Oracle8 class:

Property

Type

Description



OID

string

The Object ID of the Object View.

WhereClause

string

Used by object views and relational views.

CheckConstraint

string

Used to indicate a CHECK constraint.

CollectionTypeLength

string

Used by Varrays of Scalar type.

CollectionTypePrecision

string

Used by Varrays of Scalar type

CollectionTypeScale

string

Used by Varrays of Scalar type

Figure 9 Schema Generation Properties for an Oracle8 Class

Schema Generation Properties for Oracle8 Operations

The following table describes the schema generation property for Oracle8 operations:

Property

Type

Description



MethodKind

Enumerated

Can be Function, Procedure, Operator, Constructor, Destructor, Trigger, MapMethod, OrderMethod, Calculated Column Order Number if Calculated View Column. Initial value is Function.

OverloadID

String

Supported for Functions.

OrderNumber

String

The column order, if a calculated View column.

IsReadNoDataState

Boolean

Initial setting is False.

IsReadNoProcessState

Boolean

Initial setting is False.

IsWriteNoDataState

Boolean

Initial setting is False.

IsWriteNoProcessState

Boolean

Initial setting is False.

IsSelfish

Boolean

Initial setting is False.

TriggerType

Enumerated

Can be AFTER, BEFORE, INSTEAD OF.

TriggerEvent

Enumerated

Can be INSERT, UPDATE, DELETE, INSERT OR UPDATE, INSERT OR DELETE, UPDATE OR DELETE, INSERT OR UPDATE OR DELETE.

TriggerText

String

Part of trigger definition.

TriggerRefererencingNames

String

Used for the trigger Referencing option.

TriggerForEach

Enumerated

Can be ROW, STATEMENT

TriggerWhenClause

String

Parameter for a trigger.

Figure 10 Schema Generation Properties for Oracle8 Operations


Schema Generation Properties for Oracle8 Class Attributes

The following table describes the schema generation properties for Oracle8 attributes:

Property

Type

Description



OrderNumber

String

Column order for tables.

IsUnique

Boolean

If set to False (the default), the attribute is not required to be unique.

NullsAllowed

Boolean

If set to True (the default) attribute is required to have a value. A value is required for NOT NULL settings.

Length

string

Used for scalar datatypes such as CHAR, VARCHAR, etc.

Precision

string

Used by NUMBER scalar datatype.

Scale

string

Used by NUMBER scalar datatype.

IsIndex

Boolean

Identifies whether the attribute is part of an index. Default is FALSE.

IsPrimaryKey

Boolean

Marks the attribute as the Primary Key or part of the Primary Key. The attribute must be a scalar type. If more than one Primary Key attribute is identified, a concatenated primary key is generated. Default is False.

CompositeUnique

Boolean

Identifies if attribute is part of a composite. The default is False.

CheckConstraint

string

Used to indicate a CHECK constraint.

Figure 11 Schema Generation Properties for Oracle8 Class Attributes


Schema Generation Properties for Oracle8 Roles

The following is the schema generation property for an Oracle8 role:

Property

Type

Description



OrderNumber

string

Order of the table column.

Figure 12 Schema Generation Properties for Oracle8 Roles

Schema Generation Properties for Oracle8 Module Specifications

Property

Type

Description



IsSchema

Boolean

Identifies if the component is a schema.

Figure 13 Schema Generation Properties for Oracle8 Modules


4.     Oracle8 Schema Objects and how they are modeled in Rose

Object Types

An object type is a user-defined datatype that enables you to capture a complex, real-world entity as a single structured data unit that can be queried, updated, and stored in an Oracle8 database. The object types you create can be used the same way you use built-in relational datatypes.

By creating object types in your schema you are able to:

·         Package and store data together with its associated application logic.

·         Enable multiple applications to access the data without having to generate the code needed to use it.

·         Create a bridge between an existing relational database and an object-based application.

How Object Types are structured

An object type has:

·         Attributes that capture the structure and state of the entity the object type is modeling. For example, a CUSTOMER object type may have attributes such as NAME, ADDRESS, CUSTOMER-ID, etc.

·         Methods, such as procedures, functions, and map or order comparison methods.

Attributes

When you create an attribute for an object type, you provide the attribute’s datatype, which can be:

·         Scalar, using built in types such as CHAR, NUMBER, VARCHAR, DATE, etc. For example, the CUSTOMER object type may have a NAME attribute whose datatype is VARCHAR2.

·         Another object type. For example, an attribute for the CUSTOMER object type may be a PURCHASE_ORDER object type. This association can be made by creating a reference (REF) to PURCHASE_ORDER or it can be by value.

·         A collection type--either a VARRAY or a nested table. VARRAYs and nested tables are structured collections of data. For example, the CUSTOMER object type may have a CUSTOMER_CONTACTS attribute whose datatype is a VARRAY of five names.

Methods

By defining methods with an object, you are able to package application logic with your data, enabling object-based applications to use the data without requiring additional code. The methods you can define for an object type include:

·         Stored functions and procedures

·         Triggers

·         Map or Order Comparison methods

·         Constructor method (the method for creating the object itself)

How Rose/Oracle8 Models Object Types

Rose/Oracle8 models an object type as a Class  with a Stereotype of Object Type. For example, the following is a sample CUSTOMER object type:

Attributes

Attributes are modeled in Rose as Attributes.

Nested Object Types

Rose models an attribute whose datatype is another object type (a nested object type) as an association between the two object types. For example, if the object type CUSTOMER has an attribute whose datatype is the PURCHASE_ORDER object type, the attribute is modeled as follows:

In this case, the association is by value. If you create a REF (a pointer or reference similar to a foreign key in a relational table), Rose/Oracle8 models it as an aggregate association. In this case, CUSTOMER is the Client (Role B in the association’s Rose specification) and PURCHASE_ORDER is the Supplier (Role A in the association’s Rose specification):


Rose Tip

In some databases, the order of the attributes may be significant. Use the Ordering Wizard from the Tools - Oracle8 menu to display how attributes are ordered in an object type, relational table, or relational view. This is particularly useful if an attribute has a non-scalar attribute (such as another datatype or REF) since these are modeled as associations with other schema objects.

NULL and NOT NULL Constraints

Rose/Oracle8 models the NULL constraint as a model property associated with an attribute. By default, the NullsAllowed property is set to True.

Unique Constraint

Rose/Oracle8 models the Unique constraint as a model property for an attribute. By default, the IsUnique property is set to False.

Methods

Methods are modeled as Operations in a Rose model. These can include:

·         Triggers. These use the Implementation setting for Export Control  to distinguish them from other methods.

·         Stored functions. These are methods with a return type. Modeled as operations of a Rose Class Utility that bears the same name as the schema.

·         Map or Order comparisons

·         Object constructor/destructor

·         Calculation for deriving the value of an attribute

The type of method is captured by the MethodKind model property.

Rules for Using Object Types

All Oracle8 rules for creating Object Types also apply in Rose/Oracle8. Please note these specific rules:

·         An object type can have one MAP method or one ORDER method, but not both.

·         An object type cannot have an attribute with a datatype of ROWID, LONG, LONG RAW, NCLOB, NCHAR, or NCHAR VARYING.

·         You must use PRAGMAs to indicate the access level of member functions.

·         You cannot define an INDEX on an object type or an object type’s attributes unless it has a scalar datatype.


Object Views

An object view is a virtual object table. Its significant features include your ability to:

·         “Objectify” the data currently stored in relational tables. By creating these object containers for existing relational data, your client applications can begin using object technology without the need to immediately change the underlying structure of your data.

·         Begin to introduce objects into a relational database.

·         Customize access to data.

·         Improve overall performance. (When stored as a row in an object view, relational data is retrieved as a single unit.)

Rose/Oracle8 greatly simplifies introducing object views to your schemas. Specifically, you can:

·         Reverse engineer an existing relational schema into Rose.

·         Use Rose/Oracle8’s Data Type Creation Wizard to build the object types and object views that will front-end your relational data with object-relational constructs.

·         Forward engineer (generate schema) from your Rose model and update your schema with the new object views and types.

To create an object view (whether you’re using Rose/Oracle8 or generating the SQL yourself), you first need to create an object type that encapsulates the data from one or more relational tables. This object type serves as the bridge between the object view and relational data.

You also need to designate one or more of the object view’s attributes as an object identifier that the view will use to enable REF’s to point to objects (rows) in the view. (An object identifier can be a composite of more than one attribute.)

Since it generates the constructs you need, use Rose/Oracle8’s Data Type Creation Wizard to create both the object types and object views that will extend your relational database.

How Rose/Oracle8 Models Object Views

Rose/Oracle8 models an object view as a Class with an Object View Stereotype. It represents the link between the underlying object types and relational tables as Dependencies.

For example:

The Object View’s attribute(s) that you selected as the Object Identifier is captured as a model property. For example:

Rules for Using Object Views

All Oracle8 rules for creating and using object views also apply in Rose/Oracle8. In addition, note that you cannot specify an alias when creating an object view.


Object Tables

An object table enables you to place an object type in a relational construct. The columns in the object table correspond to the attributes in the underlying object type. Each row in the object table contains an object.

For example, consider a simple NEW CUSTOMER object type that has a NAME attribute and a CUSTOMER_ID attribute. Conceptually, an object table created from this object type would look like this:

By packaging an object type in an object table, you can access the objects in a typically relational way. Note that another alternative for creating object packages that can be used in a relational world, is to create Object Views.

How Rose/Oracle8 Models Object Tables

Rose/Oracle8 models an object table as a Class with a Stereotype of Object Table. Since object tables are built from underlying object types, Rose/Oracle8 models this relationship as a Dependency.

For example:

Rules for Using Object Tables

All Oracle8 rules for creating and using object tables also apply in Rose/Oracle8.

VARRAYs

A VARRAY is a datatype you create to define an ordered collection of data elements.

All of the elements in a VARRAY must have the  same datatype. The size of a VARRAY determines how many elements it can contain. Since a VARRAY defines an ordered collection, you can use it where the order of the elements is significant. (Each element in a VARRAY has an index that is based on the element’s position in the array.) This is in contrast to a nested table which is an unordered collection type.. VARRAYs are stored in a single column; they allow you to retrieve a collection as a whole.

You can use a VARRAY to define the datatype for:

·         An attribute in an object type

·         A column in a relational table

For example, in a CUSTOMER object type, you can use a CONTACT_NAME VARRAY to define the datatype for a CUSTOMER_CONTACTS attribute. If the size of the CONTACT_NAME VARRAY is five, up to five names an be in the array.

Since VARRAYs can be used to define the datatype of a column in a relational table, you are able to introduce this object construct into your existing relational schema.

How Rose/Oracle8 Models VARRAYs

Rose/Oracle8 models a VARRAY as a Class with a Stereotype of VARRAY. When you create a VARRAY in Rose/Oracle8, it can have a scalar datatype or it can be based on an object type.

If based on another object type, Rose/Oracle8 models this as a dependency between the object type and the VARRAY:


Rules for Using VARRAYs

All Oracle8 rules for creating VARRAYs also apply in Rose/Oracle8. Please note these specific rules:

·         A VARRAY cannot have a datatype (directly or indirectly by nested object types) of BLOB, CLOB, NCLOB, NCHAR, or NCHAR VARYING. Note that this rule does not apply to object types that are included by reference.

·         A VARRAY cannot have a nested table as a datatype, either directly or indirectly.

·         A VARRAY does not support an index.

About Nested Tables

A nested table is a table of unordered data elements that is embedded as a column in another table.  You can perform the same operations on a nested table that you can perform on other tables. All of the elements in a nested table must have the same datatype.

You can use a nested table to define the datatype for:

·         An attribute in an object type

·         A column in a relational table

How Rose/Oracle8 Models Nested Tables

Rose/Oracle8 models a nested table as a Class with a Stereotype of NestedTable. When you create a nested table in Rose/Oracle8, it is based on an object type. Rose models the association between the nested table and its underlying object type as a dependency. For example:

When you use a nested table as the datatype for an object type attribute or a column in a relational table, Rose models the nested table attribute as an association between the nested table schema object and the object type or relational table. For example:

Rules for Using Nested Tables

All Oracle8 rules for creating nested tables also apply in Rose/Oracle8. In addition, note that a nested table cannot be based on a scalar type of NCLOB, NCHAR, or NCHAR VARYING.

Relational Tables

Relational tables have been the fundamental schema structure for relational databases. With the introduction of object technology and Oracle8, conventional relational tables can also support:

·         Using an object type, VARRAY, or nested table as the datatype for a column.

·         Building object views that extend a relational database by packaging data as virtual objects.

Rose/Oracle8 smoothes the transition to object-relational environments by:

·         Enabling you to reverse engineer your current schemas into Rose models.

·         Create new schema objects, such as object views, as well as modify existing relational constructs

·         Create and execute DDL scripts based on the Rose model.

How Rose/Oracle8 Models Relational Tables

Rose/Oracle8 models a relational table as a Class with a Stereotype of RelationalTable. For example, the following is a sample CUSTOMER relational table:

Table Columns

Rose/Oracle models table columns as attributes of the RelationalTable class.

Nested Datatypes for Columns

Rose models a column whose datatype is a user-defined datatype (i.e., an object type, VARRAY, or nested table) as an association between the table and the datatype. For example, if the CUSTOMER relational table has a CONTACTS column whose datatype is a CONTACT_LIST VARRAY, it would be modeled as:


Rose Tip

In some databases, the order of the columns (attributes) may be significant. Use the Ordering Wizard from the Tools - Oracle8 menu to display how attributes/columns are ordered in an object type, relational table, or relational view. This is particularly useful if an attribute has a non-scalar attribute (such as another datatype or REF) since these are modeled as associations with other schema objects.

REFs

A REF is similar to a foreign key in that it serves as a reference to another entity, in this case, an object type. REFs enable you to derive the content of a column by “pointing” to an object type in the schema.

Rose/Oracle8 models a REF as an aggregate association. For example, if the CUSTOMER table has an INVOICE column that uses a REF to an INVOICE object type, it would be modeled as:

Foreign Keys

Rose/Oracle8 models foreign keys as associations. For example, if the CUSTOMER table has a foreign key to a DEPARMENT_ID in another table, it would be modeled as:

NULL and NOT NULL Constraints

Rose/Oracle8 models the NULL constraint as a model property associated with an attribute (column). By default, the NullsAllowed property is set to True.

Unique Constraint

Rose/Oracle8 models the Unique constraint as a model property for an attribute (column). By default, the IsUnique property is set to False.

Index

Rose/Oracle8 models an index as a model property and lists it with the other attributes (columns) associated with the table. In the table icon, the index attribute is shown with a T.

Rules For Using Relational Tables

All Oracle8 rules for creating and using relational tables also apply in Rose/Oracle8.


Relational Views

A relational view is a standard Oracle construct for creating a virtual table based on one or more existing relational tables.

How Rose/Oracle8 Models Relational Views

Rose/Oracle8 models a relational view as a class with a stereotype of RelationalView. The columns of the view are modeled as attributes of the class. The view’s ties to underlying tables are modeled as dependencies.

For example, consider a relational view that creates a virtual table based on the ITEM and PRICE relational tables:


Rose Tip

In some databases, the order of the columns (attributes) may be significant. Use the Ordering Wizard from the Tools - Oracle8 menu to display how attributes/columns are ordered in an object type, relational table, or relational view. This is particularly useful if an attribute has a non-scalar attribute (such as another datatype or REF) since these are modeled as associations with other schema objects.


Rules For Using Relational Views

All Oracle8 rules for creating and using relational tables also apply in Rose/Oracle8.

5.     Oracle8 to Rose mapping

Oracle8 to Rose Mapping Quick Reference

The following table provides a quick reference for Oracle8 to Rose mapping.

Oracle Concept

Model Item

Description

Object Type

Class
Stereotype= Object Type

Rose models an Object Type as a class with an Object Type stereotype. The Object Type’s attributes are modeled as class attributes; its methods are modeled as operations.

Relational Table

Class
Stereotype= Relational Table

Rose models a Relational Table as a class with a Relational Table stereotype. Table columns are modeled as class attributes.

Object Table

Class
Stereotype= Object Table

Rose models an Object Table as a class with an Object Table stereotype. It models the table’s relationship with its underlying Object Type as a dependency.

Object View

Class
Stereotype= Object View

Rose models an Object View as a class with an Object View stereotype. View columns are modeled as attributes; methods are modeled as operations. The relationships between the Object View and its underlying object type(s) and relational table(s) are modeled as dependencies.

VARRAY

Class
Stereotype=VARRAY

Rose models a VARRAY as a class with a VARRAY stereotype. The relationship between the VARRAY and an underlying type is modeled as a dependency.

Nested Table

Class
Stereotype=Nested Table

Rose models a Nested Table as a class with a Nested Table stereotype. The relationship between the Nested Table and the underlying type is modeled as a dependency.

Relational View

Class
Stereotype=Relational View

Rose models a Relational View as a class with a Relational View stereotype. View columns are modeled as class attributes. Rose uses dependencies to model relationships between the view and its underlying tables.

Column Name for Table or View

Attribute

The scalar type of the column is defined by using two model properties; one for the scalar type and a second for the length or size of the column (if applicable).

Attribute for an Object Type

Attribute

Scalar or another Object Type.

Object Identifier
(Object Views)

Attribute

Rose uses a model property to model the object identifier for an Object View.

Index

Attribute

The attribute name is equal to the index name and the initial value of the attribute is a comma delimited set of column names for the index.

The IsIndex property is set to True and if this Index is a Primary Key index, the IsPrimaryKey property is also set to True.

REF

Association

Rose models a REF as an aggregate relationship between objects.

Foreign Key

Association

Rose models a foreign key as an association relationship between two tables.

NULL and UNIQUE Constraints

Attribute

These constraints are determined by property settings for an attribute or table column, specifically, IsUnique and NullsAllowed. .

Object or Relational View Column

Attribute

The attribute name is equal to the view column name or the view column alias, if an alias is provided.

Where an alias is provided, the initial value of the attribute is set to the fully qualified column name.

Object Type Function (has a return type)

Operation

Rose models methods as operations.

Object Type Procedure (no return type)

Operation

Rose models methods as operations.

Trigger

Operation

The export control for these operations is set to implementation to signify that these types of class methods are triggers.

Schema

Component (Subprogram specification)

The stereotype is set to Schema.

Database Domain

Physical Package

The stereotype is set to Database Domain.

Figure 14 Oracle8 to Rose Mapping Quick Reference

DISTRIBUIE DOCUMENTUL

Comentarii


Vizualizari: 796
Importanta: rank

Comenteaza documentul:

Te rugam sa te autentifici sau sa iti faci cont pentru a putea comenta

Creaza cont nou

Distribuie URL

Adauga cod HTML in site



Termeni si conditii de utilizare | Contact
© SCRIGROUP 2019. All rights reserved
