Flight simulation system Instruction

System requirements:  above windows 2000

1,Flight simulation system includes: one CD, one audio cable, and one operation manual.

2,Please insert the appropriate end of the supplied cable to the transmitter, and the other end to the MIC port.

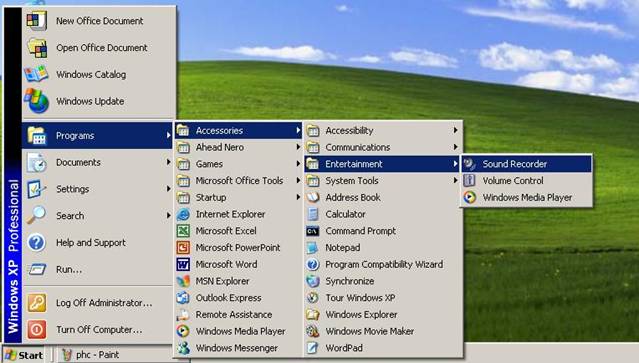

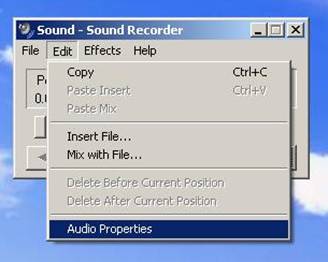

3,Click “Start / Programs / Accessories / Entertainment / Sound Recorder “ to open the Sound Recorder. Then click “Edit / Audio Properties” to open Audio Properties.

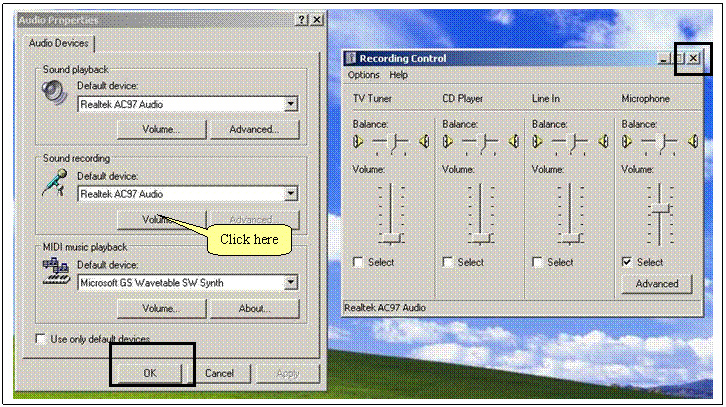

4,  Click “Volume…”,and choose the MIC, and adjust the volume to about 2/3 of full volume. Then click

     and  to exit.

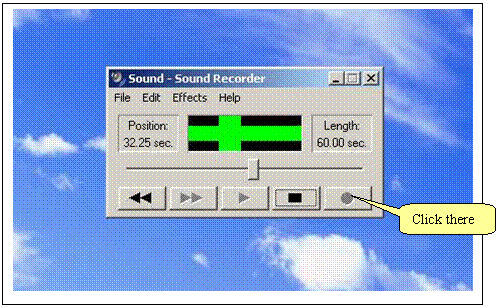

5, Click on the record button,( following the fig.) switch on the transmitter, and record the signal of the transmitter to make sure all connections are correct. If everything is wording properly you should see the wave pattern of the transmitted signal. If not, check the connections and audio settings.

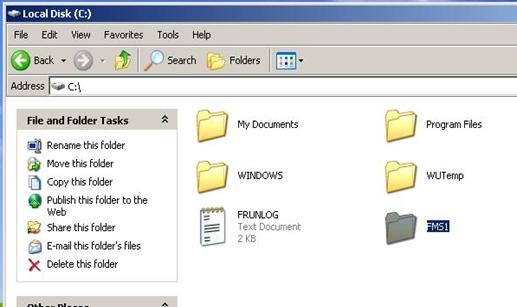

6, Insert the CD-Rom and open it , copy from the CD to your C:/ ,  and open it. Click  to run

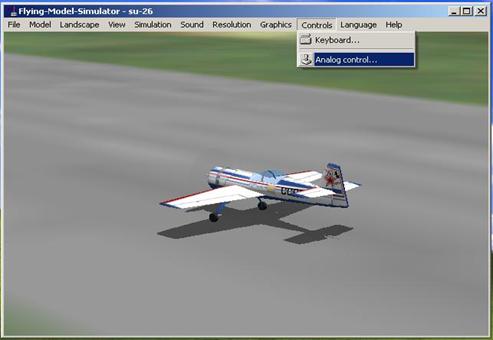

“FMS”, click “Controls” and select “Analog control…”.

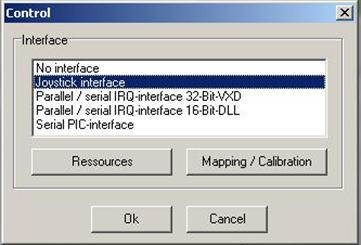

7,  Choose the Joystick interface and click .




8,  Click

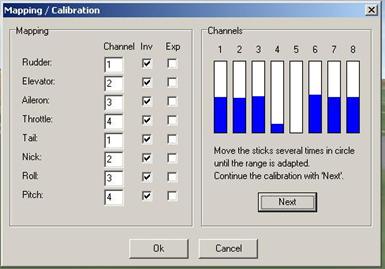

9,  Move all joysticks to calibrate the radio. Move aileron joystick to calibrate like the channel 3,move elevator joystick to

calibrate like the channel 2,move throttle joystick to calibrate like the channel 4,mov rudder joystick to calibrate like the

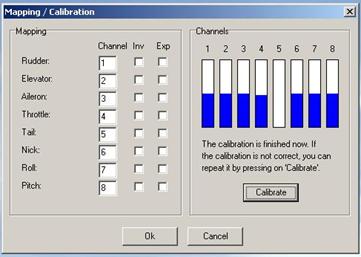

channel 1.Setup the channels following the figure of the right.(1,2,3,4,1,2,3,4).Then click “Next”. Click “Finish” completing

the calibration.

  Note :

 The calibration is very important, it will affect the performances of your model. About the “channel”, there is a little

different setup on different window system.




10,  Now, everything is ready, you can fly the model at any moment you like.

11,  Control keys:

I: Restart  P: Pause  Number 2,Number 3,Number 4,Number 5,Number 6,Number 8,Number 9: Change the view.

Enjoy your flying!!

SEP / 2005

 NOTE: THERE IS A LITTLE DIFFERENT INSTALLING STEP ON DIFFERENT WINDOW SYSTEM
