Disclaimer

          We spared no efforts to make sure that the information in this manual is correct and complete. However no liability is accepted for any errors or omissions. Gembird Electronics reserves the right to change the specifications of the hardware and software described in this manual without prior notice.

          No part of this manual may be reproduced, transmitted or translated in any language in any form, by any means, without the prior written permission of Gembird Electronics Ltd.

          Gembird Electronics makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the product, the software, personal computers or peripheral devices.

Gembirdģ is a registered trademark of GMB Tech (Holland) bv.

Other names or products not mentioned above may be registered trademarks or trademarks of their respective owners.

Copyright © 2007 Gembird Electronics Ltd. All rights reserved.


IS-BR User manual




Introduction

Thank you for buying the Gembirdģ Broadband router! This manual will help you install and use it properly.

This product is specifically designed for Middling and Small Corporation needs. It provides a complete solution for Internet surfing and corporation resources sharing, and it is easy to configure and operate for even non-technical users. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product.

Just connect your DSL or Cable Modem to the Router, and all the computers in your home or office can share the Internet -- all at the same time. The built-in 4-port switch lets you attach seven local PCs directly, or daisy-chain out to more hubs and switches as your network grows.

Once your computers are connected to the Internet through the Router, they can communicate with each other too, sharing resources and files. All your computers can print on a shared printer connected anywhere in the building. And you can share all kinds of files between computers -- music, digital pictures, and other documents.

Features

          Share your broadband Internet connection among 4 computers

          Built-in DHCP server for automatic configuration of LAN IP addresses

          Built-in powerful firewall preventing your LAN from attacks via Internet

          Built-in WEB-server providing interface for easy installation and management

          Supports PPPoE Auto-connect and Auto-disconnect

          Supports NAT & IP routing


Specifications

          Supports 1xWAN and 4(8)xLAN 10/100Mbps ports

          Supports DHCP/Static IP/PPPoE/PPTP/L2TP client

          Supports IP Filter, URL Filter, Port Filter and MAC Address Filter

          Supports TCP/IP, PPPoE, DHCP, ICMP, NAT, SNTP, ARP Protocols

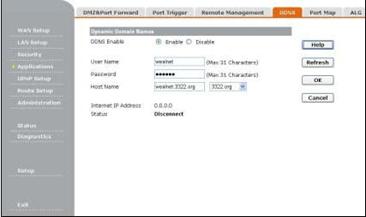

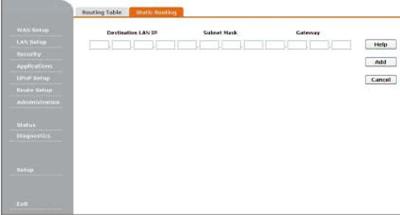

          Supports Time Schedule, MAC Address CLONE, Static Route, Dynamic DNS

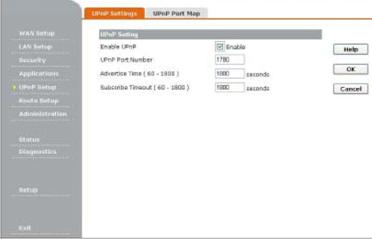

          Supports UPnP, Virtual Server and Port Mapping

          Supports DMZ host, VPN Passthrough for IPSec, PPTP and L2TP Protocols

          Built-in network diagnostics tools

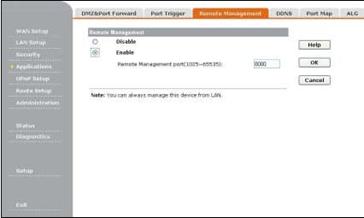

          Supports Remote and Web Management

          Supports security logs

          Dimensions: 145x92x35mm

          Product weight: 165g

          Power supply adapter: 9VDC, 1A

          Consumption: up to 12W

          Storage conditions: temp. -4070 Celsius degrees, humidity: 5-90% RH non-condensing

          Operating conditions: temp. 040 Celsius degrees, humidity: 10-90% RH non-condensing


System requirements

          DSL/Cable modem

          10M, 100M or 10/100M Ethernet card on each PC

          TCP/IP network protocol for each PC installed

          RJ45 twisted-pair cables, patch cords

          Internet browser Microsoft IE4.0 (or Netscape Navigator 4.0) or later

Package Contents

          Broadband router

          Power adapter

          Software CD

          User manual


Hardware Installation

Typical Installation

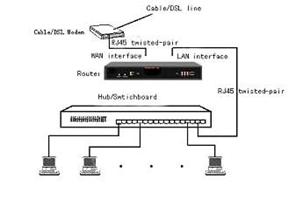

Multifunction Broadband Router connection

1.        Make sure all devices, including your PCs, modem, and Router, are powered down

2.        Using an Ethernet network cable, connect the LAN or Ethernet network port of the cable or DSL modem to the Routerís WAN port

3.        Connect an Ethernet network cable to your PCís Ethernet network adapter

4.        Connect the other end to one of the Routerís Ethernet LAN ports (1, 2, 3, 4)

5.        Repeat Steps 3 and 4 for every PC you wish to connect to the Router. If you are connecting more than seven PCs to the Router, then you will need to connect a hub or switch to any of the Routerís Ethernet LAN ports

6.        Power on the cable or DSL modem, and power on the PC you wish to use to configure the Router

7.        Connect the included power adapter to the Router. And connect the other end of the adapter to an electrical outlet


LED indicators

          POWER (green)††

The LED illuminates when the router is powered on.

          RUN (green)

The LED is flickering when the router is working.

          WAN (green)

The Link/Act LED serves two purposes. If the LED is continuously illuminated, the Router is successfully connected to a device through the corresponding port. If the LED is flickering, the Router is actively sending or receiving data over that port.

          LAN 1, 2, 3, 4 (green)

The Link/Act LED serves two purposes. If the LED is continuously illuminated, the Router is successfully connected to a device through the corresponding port. If the LED is flickering, the Router is actively sending or receiving data over that port.


Port

          LAN (1, 2, 3, 4)

10/100Mbps RJ45 Auto-sensing

These four LAN ports are where you will connect networked devices, such as PCs, print servers, remote hard drives, and anything else you want to put on your network. if you connect this product with the Hub(orSwitchboard ) correctly, the Routerís corresponding LED and the Hubís(or the Switchboardís) must be illuminates.

          WAN

10/100Mbps RJ45 port.

The WAN port is where you will connect Cable/DSL Modem or other LAN.

          RESET

The Reset Button for clear the Routerís data and restore the factory default config.

          AC 9V

Power inlet.


Network Setting and Software Installation

TCP/IP Configuration

1.        Click Start button and choose Settings, then click Control Panel.

2.        Double click Network icon and select Configuration tab in the Network window.

3.        Click Add button to add network component into your PC.

4.        Double click Protocol to add TCP/IP protocol.

5.        Select Microsoft item in the manufactures list. Add choose TCP/IP in the Network Protocols. Click OK button to return to Network window.

6.        The TCP/IP protocol shall be listed in the Network window. Double click TCP/IP to set the TCP/IP protocol.

7.        Select Obtain an IP address automatically in the IP Address tab.

8.        Click OK to complete the install procedure and restart your PC to enable the TCP/IP protocol.


IP Setting

The following instruction set up the computer running windows 2000/ XP.

1. Click on Start and select Run.

2. Type cmd then click OK button.

3. From the Command Prompt, enter ipconfig. It will return your IP Address, subnet mask, and default gateway.

4. Type exit to close the command prompt.

Make sure you take note of your computerís Default Gateway IP Address. The Default Gateway is the IP Address of the Router. By default, it should be 192.168.16.1


Wizard Setup

You may run Wizard Setup to quickly set up your router.

This product provides Web based configuration scheme that is configuring by Netscape Communicator or Internet Explorer. Take example for Microsoft Internet Explorer.

1. Activate your browser, select Tools, point to Internet option, click connections tabselect never dial a connection. Click LAN Settings button.




2. Nothing should be checked. Click OK button.

3. Click the OK button on the Connections tab, close the dialog box.

4. Type https://192.168.16.1 in your web browser and press EnterKey in the user name and password (if you use it first, you can type the factory default setting .User name is admin and password is admin), click on the OK button.

5. The Routerís Web-based Utility will appear, Click Wizard Setup.

6. An Installation Wizard will guide you through the process. Click the Next button.

7. The Connection Type dialog box will appear.

The Router provides five connection types: Static IP Address, Dynamical IP address, PPPoE, PPTP, and L2TP. But in the Wizard Setup only select three connection types, so if you have to select PPTP and L2TP, please refer to Step 3.5.Depending on which connection type you select, the features available on the Set Connect Parameters dialog box will differ. If your ISP assigns youíre a fixed IP address, click Static IP Address and continue to next step. Most Broadband ISPs assign their clients with a different IP address each time they log on. If this is the case with your ISPs, click Dynamical IP Address. If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoE. If they do, click PPPoE. Proceed to the instructions for the connection type you are using.

Static IP Address

You will need to enter the IP Address, Subnet Mask, ISP Gateway Address, and†† DNS Address provided by your ISP.

IP Address: Enter the IP address assigned by your ISP.

Subnet Mask: Enter the Subnet Mask assigned by your ISP.

ISP Gateway Address: Enter the Gateway assigned by your ISP.

MTU: Maximum Transmission Unit-you may need to change the MTU for optimal performance with your specific ISP. 1500 is the default MTU

Domain Name Server Address: Enter the Primary DNS Server IP address assigned by your ISP.

Secondary DNS Address: This is optional.

Dynamic IP Address

MTU: Maximum Transmission Unit-you may need to change the MTU for optimal performance with your specific ISP. 1500 is the default MTU

HostName: The Host Name is optional but may be required by some ISPs. The default host name is router.††

PPPoE

Your ISP will provide you with a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software from your computer. The software is no longer needed and will not work through a router.

PPPoE User Name: Enter your PPPoE user name.

PPPoE Password: Enter your PPPoE password.

MTU: Maximum Transmission Unit-you may need to change the MTU for optimal performance with your specific ISP. 1492 is the default MTU

Maximum Idle Time: Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disabled this feature. Enable 0.

8. Set LAN IP Address

IP Address: The gateway address of the Router. Unless you have specific internal needs, these should be no reason to change the value. Click the next button.

9. Set DHCP Server

DHCP Server: The settings of TCP/IP environment include Host IP, Subnet Mask, Gateway, and DNS configurations. It is not a simple task to correctly configure all the computers in your LAN environment. Fortunately, DHCP provides a rather simple approach to handle all these settings. This product supports the function of DHCP server. If you enable this productís DHCP server and configure you computers as automatic IP allocation mode, when your computer is powered on, it will automatically load the proper TCP/IP settings from this product. The default Value is enabled. Do not need to change it and click the next button.

10.The all parameters dialog box will appear, check the parameters, then Click Finfish button to complete the setup procedure.

.


Status

Click Advance Setup, A Status dialog box will appear. This option provides the current status of the device.

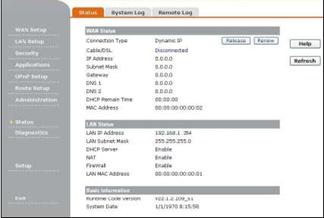

Status

You can use the Status screen to see the connection status for the router's WAN/LAN interfaces, firmware version numbers.

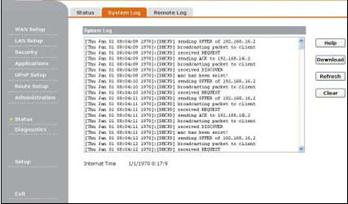

System Log

System log displays any illegal attempts to access your network

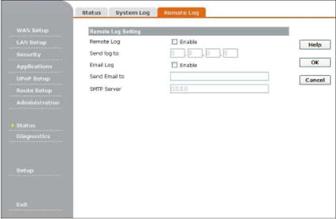

Remote Log

You can configure the parameter to send the log to a remote host or send email to someone.


WAN Setup

The Router provides five connection types: Static IP Address, Dynamical IP address, PPPoE, PPTP, and L2TP. Specify the WAN connection type required by your Internet Service Provider, then click OK Button to provide detailed configuration parameters for the selected connection type. Proceed to the instructions for the connection type you are using.

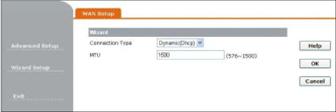

Dynamic

Most Broadband ISPs assign their clients with a different IP address each time they log on. If this is the case with your ISPs, Select Dynamical.

MTU: Maximum Transmission Unit-you may need to change the MTU for optimal performance with your specific ISP. 1500 is the default MTU

First DNS Server: Enter the First DNS Server IP address assigned by your ISP,this is optional.

Secondary DNS Server: Enter the Secondary DNS Server IP address assigned by your ISP, this is optional.

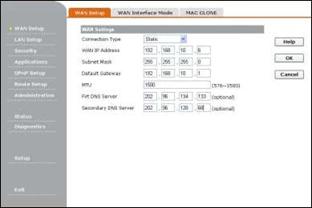

Static

If your ISP assigns youa fixed IP address, Select Static.

IP Address: Enter the IP address assigned by your ISP.

Subnet Mask: Enter the Subnet Mask assigned by your ISP.

Default Gateway: Enter the Gateway assigned by your ISP.

MTU: Maximum Transmission Unit-you may need to change the MTU for optimal performance with your specific ISP. 1500 is the default MTU

First DNS Server: Enter the First DNS Server IP address assigned by your ISP,this is optional.

Secondary DNS Server: Enter the Secondary DNS Server IP address assigned by your ISP, this is optional.

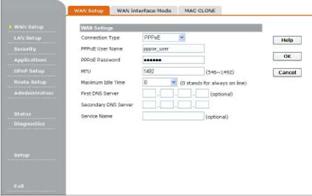

PPPoE

If you are connected to the Internet through a DSL line, check with your ISP to see if they use PPPoE. If they do, select PPPoE

PPPoE User Name: Enter your PPPoE user name.

PPPoE Password: Enter your PPPoE password.

MTU: Maximum Transmission Unit-you may need to change the MTU for optimal performance with your specific ISP. 1492 is the default MTU

Maximum Idle Time: Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disabled this feature. Enable 0.

First DNS Server: Enter the First DNS Server IP address assigned by your ISP,this is optional.

Secondary DNS Server: Enter the Secondary DNS Server IP address assigned by your ISP, this is optional.

Service Name: The Service Name is optional but may be required by some ISPs.

PPTP

PPTP is a service used in Europe and Israel only. If you are using a PPTP connection, check with your ISP for the necessary setup information.

PPTP User Name: Enter your PPTP user name provided by your ISP.

PPTP Password: Enter your L2TP password provided by your ISP.

PPTP Server address: Enter your PPTP Server address provided by your ISP.

WAN IP: Select Dynamic IP or Static IP. Select Static IP if your ISP assigned you the IP address, subnet mask, gateway, and DNS server address.

MTU: Maximum Transmission Unit-you may need to change the MTU for optimal performance with your specific ISP.

Maximum Idle Time: Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disabled this feature. Enable 0.

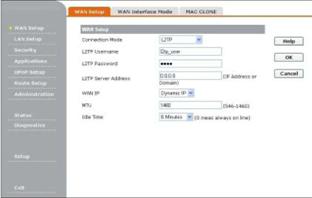

L2TP

L2TP User Name: Enter your L2TP user name provided by your ISP.

L2TP Password: Enter your L2TP password provided by your ISP.

L2TP Server address: Enter your PPTP Server address provided by your ISP.

WAN IP: Select Dynamic IP or Static IP. Select Static IP if your ISP assigned you the IP address, subnet mask, gateway, and DNS server address.

MTU: Maximum Transmission Unit-you may need to change the MTU for optimal performance with your specific ISP.

Maximum Idle Time: Enter a maximum idle time during which the Internet connection is maintained during inactivity. To disabled this feature. Enable 0.

WAN Interface Mode

You can set a WAN Interface Mode in this dialog box, The Router provides five mode: 10/100M Auto-Negotiation, 100M Full Duplex, 100M half Duplex, 10M Full Duplex, and 10M half Duplex.

MAC Clone

The default MAC address is set to the WANís physical interface MAC address on the Router. It is not recommended that you change the default MAC address unless required by your ISP.


LAN Setup

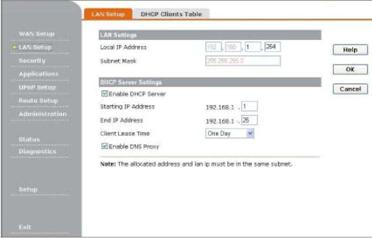

LAN Setup

Local IP Address: The value refer to your internal network settings. Unless you have specific internal needs, these should be no reason to change the value.

DHCP Server:The settings of TCP/IP environment include Host IP, Subnet Mask, Gateway, and DNS configurations. It is not a simple task to correctly configure all the computers in your LAN environment. Fortunately, DHCP provides a rather simple approach to handle all these settings. This product supports the function of DHCP server. If you enable this productís DHCP server and configure you computers as automatic IP allocation mode, when your computer is powered on, it will automatically load the proper TCP/IP settings from this product.

Starting IP Address: Enter a value for the DHCP server to start with when issuing IP addresses. This value must be 192.168.1.1 or greater, because the default IP address for the Router is 192.168.1.254.

End IP Address: Enter a value for the DHCP server to end with when issuing IP addresses. This value must be greater the IP pool Starting Address.

Client Lease Time: The Lease Time is the amount of time a network user will be allowed connection to the Router with their current dynamic IP address. Enter the amount of time, in minutes, that the user will be ďleasedĒ this dynamic IP address.

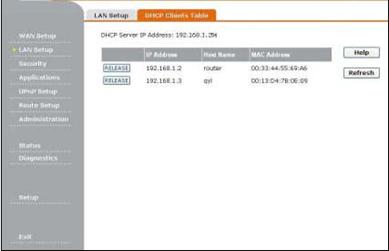

DHCP Clients Table

The Table lists the information about the hosts which have obtain an IP address from this routeís DHCP server.


Security

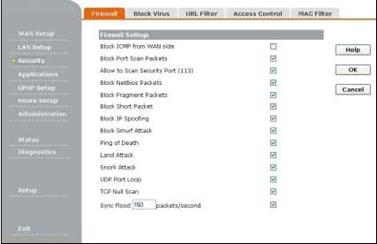

Firewall

The router provides extensive firewall protection by restricting connection parameters to limit the risk of intrusion and defending against a wide array of common hacker attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a demilitarized zone (DMZ).

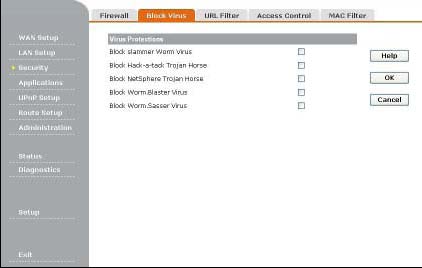

Block Virus

The Router provides virus protections. You can block slammer worm virus, hack-a-tack Trojan horse, netsphere Trojan horse, Worm.Blaster virtus, and Worm.Sasser Virus.


URL Filter

To configure the URL Filtering feature, use the table as above to specify the web sites (www.somesite.com) or web URLs containing the keyword you want to filter on your network.

1. Click the URL Filter Enable radio button.

2. Click Add button, the dialog box will appear as follow. Type the web sites, then click Ok button. The text to be blocked will appear in the URL Filter Table.

To Delete the text, just highlight it and click Delete button to remove the text.

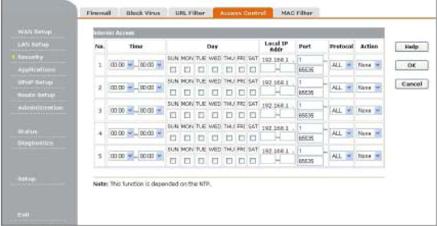

Access Control

You can filter Internet access for local clients based on IP addresses, application types, (i.e., HTTP port), and time of day.

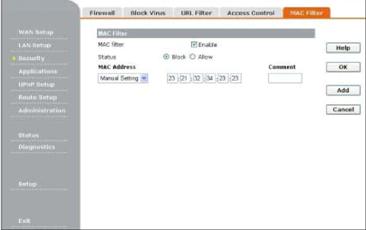

MAC Filter

Use MAC Filter to allow or deny LAN computers by their MAC addresses from accessing the Network. You can either manually add a MAC address or select the MAC address from the list of clients that are currently connected to the Router.

MAC filter: Set MAC Filter Enabled or not.

Status: Select block or allow to deny MAC addresses listed below or allow MAC addresses listed below.

MAC Address: Enter the MAC address you would like to filter.


Applications

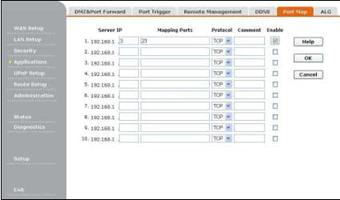

DMZ & Port Forward

If you configure the router as Port Forward, remote users accessing services such as Web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP address. In other words, depending on the requested service (TCP/UDP port number), the router redirects the external service request to the appropriate server.

Before using forwarding, you should add a static IP address to the designated PC.

The following will allow you to open a single port or a range of ports.

If you have a client PC that cannot run Internet application properly from behind the NAT firewall or after configuring the Special Applications function, then you can open the client up to unrestricted two-way Internet access. Set Forward to DMZ host, Enter the IP address of a DMZ host to DMZ Host IP Address. Adding a client to the DMZ (Demilitarized Zone) may expose your local network to a variety of security risks, so only use this option as a last resort.††

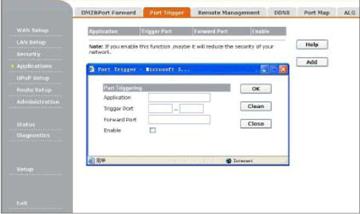

Port Trigger

Some applications require multiple connections, such as Internet gaming, video conferencing, Internet telephony and others. These applications cannot work when Network Address Translation (NAT) is enabled. If you need to run applications that require multiple connections, specify the port normally associated with an application in the Trigger Port field, then enter the Forward ports associated with the trigger port to open them for inbound traffic.

Remote Management

This feature allows you to manage the router from a remote location, via the Internet. To Enable Remote Management, Click the Enable radio button, then enter the port number you will use to remotely access the Router. The default port is 8000.

DDNS

The Router offers a DDNS feature. DDNS lets you assign a fixed host and domain name to a dynamic Internet IP address. It is useful when you are hosting your own website, FTP server, or other server behind the Router.

Before you can use this feature, you need to sign up for DDNS service at DDNS service provider, 3322.org. If you do not want to use this feature, keep the default setting, Disable.

Port Map

Please refer to Port Forward

1. Enter Mapping IP, Mapping Port.

2. Select TCP or UDP Protocal, and click Enable frame button.

3. Click OK button to save it.

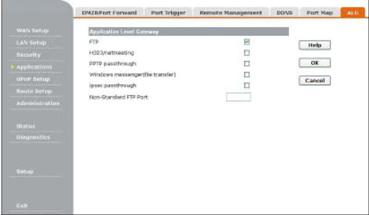

ALG

This feature allows some protocols to pass through the Router.


UPnP Setup

UPnP (Universal Plug and Play) allows automatic discovery and configuration of equipment attached to your LAN. UPnP is by supported by Windows ME, XP, or later. It provides compatibility with networking equipment, software and peripherals of the over 400 vendors that cooperate in the Plug and Play forum.


Route Setup

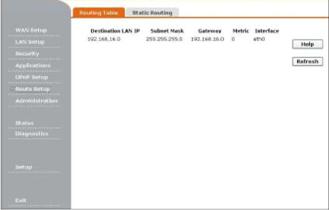

Routing Table

The routing table displays the current routing information in system.


Static Routing

A static route is a pre-determined pathway that network information must travel to reach a specific host or network.


Administration

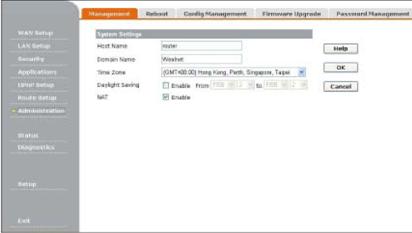

Management

Host Name: The Host Name is optional but may be required by some ISPs.

Domain Name: The Domain Name is optional but may be required by some ISPs.

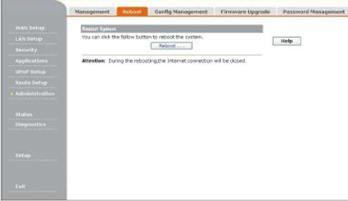

Reboot

You can click the Reboot button to restart the Router.

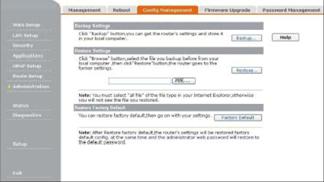

Config Management

Backup Settings

Click Backup button, you can get the routerís settings and store it in your local computer.

Restore Settings

Click Browse button, select the file you backup before from your local computer, then click Restore button, the router goes to the former settings.

Restore Factory Default

Click Factory Default button, the routerís settings will be restored factory default config, at the same time and the administrator web password will restore to the default password.

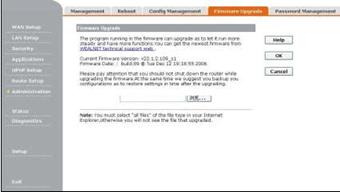

Firmware upgrade

You can upgrade the firmware of the Router here.

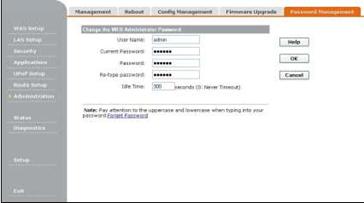

Password Management

To ensure the Routerís security, you will be asked for your password when you access the Routerís Web-based Utility. The default password is admin.

This page will allow you to change the User name and User passwords.

Idle Time: The amount of time of inactivity before the router will automatically close the Administrator session. Set this to zero to disable it.

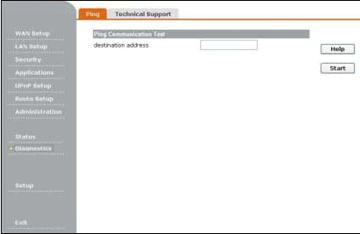

Diagnostics

This feature provides a network diagnostic tool-Ping. You can enter a destination address to test.


Resetting the router

The router has a reset button at the rear panel of the device. For some circumstances you might need to reset the router. Please follow these steps:

1. Leave the device powered on, do not disconnect the power

2. Press the reset button and hold

3. Keep the button pressed about 5 seconds

4. Release the button.

The Router will then automatically reboot itself.

If the Router locks up, simply power it down for 3 to 5 seconds by removing the power cable from the Routerís Power Port.

DISTRIBUIE DOCUMENTUL

Comentarii


Vizualizari: 1182
Importanta: rank

Comenteaza documentul:

Te rugam sa te autentifici sau sa iti faci cont pentru a putea comenta

Creaza cont nou

Distribuie URL

Adauga cod HTML in site

Termeni si conditii de utilizare | Contact
© SCRIGROUP 2021. All rights reserved
