CONDUCTIA TERMICA 2D- STATIONAR - Metoda volumelor finite

Se considera o placa metalica rectangulara ( 0.05 [m] x  0.04 [m] ) avand . Toate frontierele placii sunt mentinute la temperatura de 0 [ºC], iar termenul sursa distribuie uniform este .



Sa se determine distributia stationara de temperatura utilizand aceeasi retea de dicretizare ca la lucrarea precedenta.

∆x = ∆y = 0.01 [m]

Solutie :

Ecuatia diferentiala ce guverneaza transferul termic este:

Se utilizeaza o retea de discretizare cu 30 de  noduri uniform distribuite ca in figura :

Pentru un nod interior ecuatia discretizata este :



Ecuatiile discretizate pentru nodurile interioare ( 8, 9, 10, 11, 14, 15, 16, 17, 20, 21, 22, 23 ) ale domeniului de calcul sunt :

Solutia nalitica a problemei este :

Solutia sistemului este :



x = 0

y [mm]

T [K]

QuickField

T [K

Analitica

T [K]

Numerica MVF

Eroarea [%]

1

1429.10

1430.000

1428.26

0.12

3

1413.70

1416.000

1414.27

0.12

5

1386.80

1388.000

1385.67

0.14

7

1341.60

1345.000

1342.71

0.17

9

1281.60

1286.000

1283.49

0.19

11

1206.50

1209.000

1206.97

0.16

13

1113.30

1113.000

1111.47

0.14

15

996.47

9996.558

994.92

0.16

17

852.53

856.310

854.90

0.16

19

683.60



689.757

688.63

0.16

21

486.86

493.798

493.01

0.16

23

259.76

265.067

264.66

0.15

485 noduri

546 noduri

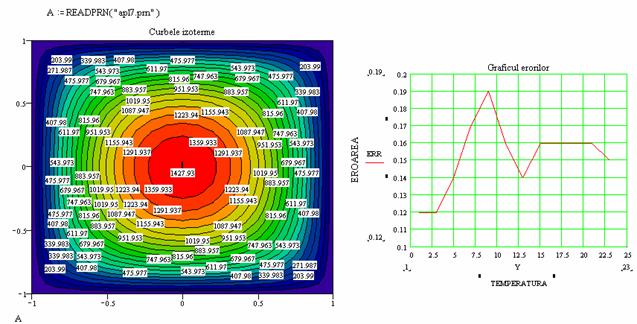

Graficul in MATCHAD 7 este :

Graficul in QUICKFIELD 5.0 ( 343 noduri ) este :



program lucrarea 7

c=================================================================

c------------REZOLVAREA ECUATIEI DE CONDUCTIE TERMICA 2D STATIONARA--

c                                         (metoda volumelor finite)

c------------ECUATIA REZOLVATA:(divk(gradT))+S=0------------------------------------------

c------------VARIABILELE DE INTRARE-----------------------------------------------------------

c                                NNX   : numarul de noduri pe directia x

c                                NNY   : numarul de noduri pe directia y

c                                L     : lungimea domeniului de calcul

c                                H     : inaltimea domeniului de calcul

c                                  TB    : conditia Dirichlet

c------------CONDITIILE LA LIMITA----------------------------------------------------------------

c            Dirichlet pe toata frontierele(W,E,S,N)

c            T(0,y)=0,T(w,y)=0,T(x,0)=0,T(x,h)=0

c------------VARIABILELE DE INTRARE-----------------------------------------------------------

c            TEMP  : temperatura T(x,y)

c------------AUTOR :Irimia Marius

c=================================================================

      parameter(nnx=21, nny=26, nit=25000)

                           double precision TEMP(nnx,nny),AX(nnx,nny),AY(nnx,nny)

                           double precision A(nnx,nny),B(nnx,nny),C(nnx,nny)

                           double precision wk(nnx,nny)

                           double precision A1(nny),B1(nny),C1(nny),wk1(nny),temp1(nny)

                           double precision DX,DY,TB,L,H,la,gz,q

                           data TB/100.0/,L/0.4/,H/0.5/,la/1000.0/,gz/0.01/

                           data q/500000.0/

c------------CALCULUL PASULUI SPATIULUI(DX)---------------------------------------------

                                 DX=L/(nnx-1)

                                DY=L/(nny-1)

                           write(*,*)'DX=',dx

                           write(*,*)'DY=',dy

c------------INITIALIZAREA TEMPERATURII---------------------------------------------------

                          do i=1,nnx

                              do j=1,nny

                                 TEMP(i,j)=0.0

                              enddo

                           enddo

c-----------INITIALIZAREA CONDITIILOR LA LIMITA DE TIP DIRICHLET--------------

c-----------------------LA FRONTIERA NORD--------------------------------------------------------

                            do i=1,nnx

                                TEMP(i,nny)=TB

                           enddo

c----------------------BUCLA DE ITERATIE----------------------------------------------------------

                             do k=1,nit

c------------FORMAREA VECTORILOR DIAGONALELOR------------------------------------

                            do i=1,nnx-1

                              if(i.eq.1)then

c------------DIAGONALA INFERIOARA------------------------------------------------------------

                           do j=1,nny-1

                              if(j.eq.1)then

                                A(i,j)=0.0

                                A1(j)=A(i,j)

                              else

                                A(i,j)=-la*(DX/2.0*gz)/DY

                                A1(j)=A(i,j)

                              endif

                           enddo

c------------DIAGONALA SUPERIOARA-----------------------------------------------------------

                           do j=1,nny-2

                              if(j.eq.1)then

                                C(i,j)=-la*(DX/2.0*gz)/DY

                                C1(j)=C(i,j)

                              else

                                C(i,j)=-la*(DX/2.0*gz)/DY

                                C1(j)=C(i,j)

                              endif

                           enddo

                                     C(i,nny-1)=0.0

                                C1(nny-1)=C(i,nny-1)

c------------DIAGONALA PRINCIPALA-------------------------------------------------------------

                             do j=1,nny-1

                               if(j.eq.1)then

                                B(i,j)=la*(DY/2.0*gz)/DX+la*(DX/2.0*gz)/DY

                                B1(j)=B(i,j)

                               else

                                B(i,j)=la*(DY*gz)/DX+la*(DX/2.0*gz)/DY+la*(DX/2.0*gz)/DY

                                B1(j)=B(i,j)

                               endif

                           enddo

c------------FORMAREA INITIALA A TERMENULUI LIBER WK-----------------------------

                            do j=1,nny-2

                              if(j.eq.1)then

                                wk(i,j)=(la*(DY/2.0*gz)/DX)*TEMP(i+1,j)+DY/2.0*gz*q

                                wk1(j)=wk(i,j)

                              else

                                wk(i,j)=(la*(DY*gz)/DX)*TEMP(i+1,j)+DY*gz*q

                                wk1(j)=wk(i,j)

                              endif

                           enddo

                                     wk(i,nny-1)=(la*(DY*gz)/DX)*TEMP(i+1,nny-1)+DY*gz*q+

     *                    (la*(DX/2.0*gz)/DY)*TEMP(i,nny)

                                wk1(nny-1)=wk(i,nny-1)




c-----------REZOLVAREA SISTEMULUI------------------------------------------------------------

      CALL TRIDAG(a1,b1,c1,wk1,temp1,nny-1)

c-FORMAREA SOLUTIEI PE TOATA LINIA VERTICALA(LINIA APLICARII TDMA)-

                             do j=1,nny-1

                              TEMP(i,j)=temp1(j)

                           enddo

                           else

c------------DIAGONALA INFERIOARA-------------------------------------------------------------

                          do j=1,nny-1

                              if(j.eq.1)then

                                A(i,j)=0.0

                                A1(j)=A(i,j)

                              else

                                A(i,j)=-la*(DX*gz)/DY

                                A1(j)=A(i,j)

                              endif

                           enddo

c------------DIAGONALA SUPERIOARA-------------------------------------------------------------

                           do j=1,nny-2

                              if(j.eq.1)then

                                C(i,j)=-la*(DX*gz)/DY

                                C1(j)=C(i,j)

                              else

                                C(i,j)=-la*(DX*gz)/DY

                                C1(j)=C(i,j)

                              endif

                           enddo

                                C(i,nny-1)=0.0

                                C1(nny-1)=C(i,nny-1)

c------------DIAGONALA PRINCIPALA--------------------------------------------------------------

      do j=1,nny-1

                               if(j.eq.1)then

                                B(i,j)=la*(DY/2.0*gz)/DX+la*(DY/2.0*gz)/DX+la*(DX*gz)/DY

                                B1(j)=B(i,j)

                               else

                           B(i,j)=la*(DY*gz)/DX+la*(DY*gz)/DX+la*(DX*gz)/DY+la*(DX*gz)/DY

                               B1(j)=B(i,j)

                               endif

                           enddo

c------------FORMAREA INITIALA A TERMENULUI LIBER WK-----------------------------

      do j=1,nny-2

                              if(j.eq.1)then

           wk(i,j)=(la*(DY/2.0*gz)/DX)*TEMP(i-1,j)+

                           *       (la*(DY/2.0*gz)/DX)*TEMP(i+1,j)

                                wk1(j)=wk(i,j)

                              else

                              wk(i,j)=(la*(DY*gz)/DX)*TEMP(i-1,j)+(la*(DY*gz)/DX)*TEMP(i+1,j)

                              wk1(j)=wk(i,j)

                              endif

                           enddo

                                     wk(i,nny-1)=(la*(DY*gz)/DX)*TEMP(i-1,nny-1)+

     *   (la*(DY*gz)/DX)*TEMP(i+1,nny-1)+(la*(DX*gz)/DY)*TEMP(i,nny)

                                wk1(nny-1)=wk(i,nny-1)

c-----------REZOLVAREA SISTEMULUI-----------------------------------------------------------

      CALL TRIDAG(a1,b1,c1,wk1,temp1,nny-1)

c--------------FORMAREA SOLUTIEI PE TOATA LINIA VERTICALA----------------------

                           do j=1,nny-1

                              TEMP(i,j)=temp1(j)

                           enddo

                           endif

                           enddo

c===========================PENTRU i=nnx==========================

c------------DIAGONALA INFERIOARA------------------------------------------------

                            do j=1,nny-1

                              if(j.eq.1)then

                                A(nnx,j)=0.0

                                A1(j)=A(nnx,j)

                              else

                                A(nnx,j)=-la*(DX/2.0*gz)/DY

                                A1(j)=A(nnx,j)

                              endif

                           enddo

c------------DIAGONALA SUPERIOARA-------------------------------------------------------------

                           do j=1,nny-2

                              if(j.eq.1)then

                                C(nnx,j)=-la*(DX/2.0*gz)/DY

                                C1(j)=C(nnx,j)

                              else

                                C(nnx,j)=-la*(DX/2.0*gz)/DY

                                C1(j)=C(nnx,j)

                              endif

                           enddo

                                     C(nnx,nny-1)=0.0

                                C1(nny-1)=C(nnx,nny-1)

c------------DIAGONALA PRINCIPALA--------------------------------------------------------------

                            do j=1,nny-1

                               if(j.eq.1)then

                                B(nnx,j)=la*(DY/2.0*gz)/DX+la*(DX/2.0*gz)/DY

                                B1(j)=B(nnx,j)

                               else

                                B(nnx,j)=la*(DY*gz)/DX+la*(DX/2.0*gz)/DY+la*(DX/2.0*gz)/DY

                                B1(j)=B(nnx,j)

                               endif

                           enddo

c------------FORMAREA INITIALA A TERMENULUI LIBER WK-----------------------------

      do j=1,nny-2

                              if(j.eq.1)then

                                wk(nnx,j)=(la*(DY/2.0*gz)/DX)*TEMP(nnx-1,j)+DY/2.0*gz*q

                                wk1(j)=wk(nnx,j)

                              else

                                wk(nnx,j)=(la*(DY*gz)/DX)*TEMP(nnx-1,j)

                                wk1(j)=wk(nnx,j)

                              endif

                           enddo

                                     wk(nnx,nny-1)=(la*(DY*gz)/DX)*TEMP(nnx-1,nny-1)+DY*gz*q+

                           *       (la*(DY/2.0*gz)/DY)*TEMP(nnx,nny)

                                wk1(nny-1)=wk(nnx,nny-1)

c-----------REZOLVAREA SISTEMULUI-----------------------------------------------------------

      CALL TRIDAG(a1,b1,c1,wk1,temp1,nny-1)

c--------------FORMAREA SOLUTIEI PE TOATA LINIA VERTICALA----------------------

                           do j=1,nny-1

                              TEMP(i,j)=temp1(j)

                           enddo

                           enddo

c----FORMAREA VECTORULUI PENTRU PUNCTELE DE CALCUL PE X SI PE Y------

                               AX(1,1)=0.0

                              AY(1,1)=0.0

                           do i=1,nnx

                              do j=2,nny

                                 AY(i,j)=AY(i,j-1)+DY

                              enddo

                           enddo

                           do j=1,nny

                              do i=2,nnx

                                 AX(i,j)=AX(i-1,j)+DX

                              enddo

                           enddo

c-----------SCRIEREA SOLUTIEI----------------------------------------------------------------------

      open(20,file='apl5.prn')

                              do i=1,nnx

                                 write(20,101)(TEMP(i,j),j=1,nny)

                              enddo

                           close(20)

101   format(26(1x,f6.2))

                            stop

                           end

                           subroutine tridag(a,b,c,r,u,n)

                           parameter (NMAX=200000)

                           integer j

                           double precision a(n),b(n),c(n),r(n),u(n)

                           double precision bet, gam(NMAX)

c----------a=diagonala inferioara------------------------------------------------------------------------

c----------b=diagonala principala------------------------------------------------------------------------

c----------c=diagonala superioara-----------------------------------------------------------------------

c----------r=termenul din partea dreapta----------------------------------------------------------------

c----------u=termenul necunoscut------------------------------------------------------------------------

c----------n=dimensiunea sistemului---------------------------------------------------------------------

c----------NMAX=numarul maxim al ecuatiei---------------------------------------------------------

                           if (b(1).eq.0) pause 'tridag:rewrite equations !'

                              bet=b(1)

                              u(1)=r(1)/bet

                           do j=2,n

                              gam(j)=c(j-1)/bet

                              bet=b(j)-a(j)*gam(j)

                           if(bet.eq.0) pause 'tridag failed'

                              u(j)=(r(j)-a(j)*u(j-1))/bet

                           enddo

                           do j=n-1,1,-1

                             u(j)=u(j)-gam(j+1)*u(j+1)

                           enddo

                           return

                      end
