DISTRIBUTIA TEMPERATURII INTR-O PLACA METALICA DREPTUNGHIULARA CU SURSA DE CALDURA

DISTRIBUTIA TEMPERATURII INTR-O PLACA METALICA DREPTUNGHIULARA CU SURSA DE CALDURA



                Se considera o  placa metalica dreptungiulara de dimensiuni 0,05 x      0,04[m].Conductivitatea termica a placii este λ= 4[W/m/K]. Toate  frontierele  placii sunt    mentinute  la  temperatura  constanta  de 0° C si termenul sursa este S=40∙106[W/m3].



                       Sa se calculeze distributia stationara de temperatura in placa folosind reteaua de dicretizare

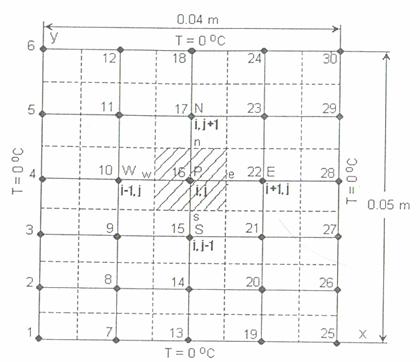

    din figura de mai jos(Δx=Δy=0,01 m).

  Rezolvare :

      Ecuatia  conductiei termice stationare 2D pentru conditiile enuntate este :





                      Ecuatia  discretizata pentru un nod interior (de exemplu :nodul 16) este urmatoarea :

                        apTp= awTw+ aETE+ aSTS+ aNTN+ b

sau:

    ;   ;  ; ;     ap=aW+aE+ aS+ aN ;      b=

               Termenul sursa ,S fiind constant,nu este necesar sa fie liniarizat.  Valorile coeficientilor sunt:

aw = aE = aS = aN =4   ;   ap=16 ;   b=4000

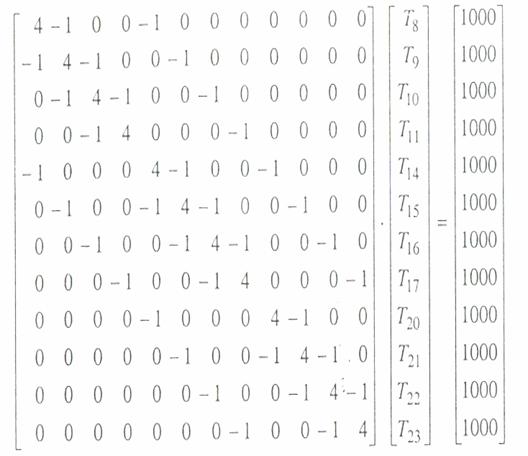

                  Rezulta sistemul de ecuatii:

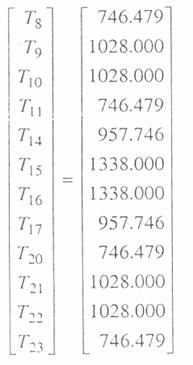

        Solutia sistemului este:




                                         PROGRAMUL  IN  FORTRAN:



                 parameter (nnx=21,nny=26,nit=1500)

                double precision temp(nnx,nny),ax(nnx,nny),ay(nnx,nny)

                double precision a(nnx,nny),b(nnx,nny),c(nnx,nny),wk(nnx,nny)

                double precision a1(nny),b1(nny),c1(nny),wk1(nny),temp1(nny)

                double precision dif(nnx,nny),temp2(nnx,nny)

                double precision dx,dy,tb,l,h,la,gz,s,err

                data tb/0.0/,l/0.04/,h/0.05/,la/4.0/,gz/1.0/,err/0.001/

                data s/40000000.0/

     c -----------------calculul pasului dx si dy------------------------------------------------

                 dx=l/(nnx-1)

                 dy=h/(nny-1)

                 write(*,*)'dx=',dx

                 write(*,*)'dy=',dy

     c-----------------initializarea temperaturii--------------------------------------------

                 do i=1,nnx

                  do j=1,nny

                   temp(i,j)=0.01

                  enddo

                 enddo

     c-----------introducerea conditiilor de tip Dirichlet----------------------------------

     c-----------------frontiera NORD-----------------------------------------------------

                do i=1,nnx

                     temp(i,nny)=tb

                  enddo

     c-------- frontiera SUD-----------------------------------------------------------------

                  do i=1,nnx

                     temp(i,1)=tb

                  enddo

     c--------- frontiera WEST-------------------------------------------------------------------

                  do j=1,nny

                      temp(1,j)=tb

                  enddo

      c--------- frontiera EST---------------------------------------------------------------------------

                  do j=1,nny

                      temp(nnx,j)=tb

                  enddo

      c==================bucla de iteratie==============================

                  do k=1,nit

      c------------formarea diagonalelor vectorilor --------------------------------------------------

                  do i=2,nnx-2

                      if(i.eq.2)then

      c-------------diagonala inferioara ‘ a’------------------------------------------------------

                  do j=2,nny-1

                      if(j.eq.2)then

                       a(i,j)=0.0

                       a1(j-1)=a(i,j)

                      else

                       a(i,j)=-la*(dx*gz)/dy

                       a1(j-1)=A(i,j)

                     endif

                   enddo

     c-----------diagonala superioara  ‘c’ -------------------------------------------------------

                   do j=2,nny-2

                      if(j.eq.2)then

                       c(i,j)=-la*(dx*gz)/dy

                       c1(j-1)=c(i,j)

                    else

                       c(i,j)=-la*(dx*gz)/dy

                       c1(j-1)=c(i,j)

                     endif

                   enddo

                      c(i,nny-1)=0.0

                      c1(nny-2)=c(i,nny-1)

     c-------------   diagonala principala ‘b’--------------------------------------------------------

                   do j=2,nny-1

                      if(j.eq.2)then

                      b(i,j)=2.0*la*(dy*gz)/dx+2.0*la*(dx*gz)/dy

                      b1(j-1)=b(i,j)

                      else

                      b(i,j)=2.0*la*(dy*gz)/dx+2.0*la*(dx*gz)/dy

                      b1(j-1)=b(i,j)

                      endif

                   enddo

     c---------formarea initiala a vectorului termenului liber (wk)----

                    do j=2,nny-2

                     if (j .eq. 2) then

                      wk(i,j) = (la*(dx*gz)/dy)*temp(i,j-1) +

     *                              (la*(dy*gz)/dx)*temp(i-1,j) +

     *                              (la*(dy*gz)/dx)*temp(i+1,j) + s*dx*dy*1.0

                      wk1(j-1) = wk(i,j)

                    else

                     wk(i,j) = (la*(dy*gz)/dx)*temp(i-1,j) +

     *                             (la*(dy*gz)/dx)*temp(i+1,j) + s*dx*dy*1.0

                      wk1(j-1) = wk(i,j)

                     endif

                    enddo

                      wk(i,nny-1) = (la*(dy*gz)/dx)*temp(i-1,nny-1) +

     *                                      (la*(dy*gz)/dx)*temp(i+1,nny-1) +s*dx*dy*1.0+

     *                                      (la*(dx*gz)/dy)*temp(i,nny)

                       wk1(nny-2) = wk(i,nny-1)

     c------------- solutia sistemului ------------------------------------------------------------

            CALL TRIDAG (a1,b1,c1,wk1,temp1,nny-2)

     c-------formarea solutiei finale pentru toate liniile verticale ----------------------

                   do j = 2,nny-1

                        temp(i,j)=temp1(j-1)

                   enddo

                     else

     c---------diagonala inferioara ‘a’ ----------------------------------------------------

                   do j = 2,nny-1

                      if (j .eq. 2) then

                      a(i,j) = 0.0



                      a1(j-1) = a(i,j)

                     else

                      a(i,j) = - la*(dx*gz)/dy

                      a1(j-1) = a(i,j)

                     endif

                   enddo

     c---------diagonala superioara ‘c’---------------------------------------------------------

                   do j = 2,nny-2

                      if (j .eq. 2) then

                       c(i,j) = - la*(dx*gz)/dy

                       c1(j-1) = c(i,j)

                     else

                       c(i,j) = - la*(dx*gz)/dy

                       c1(j-1) = c(i,j)

                       endif

                  enddo

                       c(i,nny-1) = 0.0

                       C1(nny-2) = C(i,nny-1)

     c----------diagonala principala ‘b’ ------------------------------------

                  do j = 2,nny-1

                     if (j.eq.2)then

                      b(i,j) = 2.0*la*(dy*gz)/dx+2.0*la*(dx*gz)/dy

                      b1(j-1) = b(i,j)

                    else

                      b(i,j) = 2.0*la*(dy*gz)/dx + 2.0*la*(dx*gz)/dy

                      b1(j-1) = b(i,j)

                     endif

                  enddo

     c-----formarea initiala a vectorului termenului liber (wk)-----------------

                  do j = 2,nny-2

                     if (j .eq. 2) then

                      wk(i,j) = (la*(dx*gz)/dy)*temp(i,j-1) + (la*(dy*gz)/dx)*temp(i-1,j) +

     *                              (la*(dy*gz)/dx)*temp(i+1,j) + s*dx*dy*1.0

                      wk1(j-1) = wk(i,j)

                     else

                      wk(i,j) = (la*(dy*gz)/dx)*temp(i-1,j) +

     *                              (la*(dy*gz)/dx)*temp(i+1,j) + s*dx*dy*1.0

                      wk1(j-1) = wk(i,j)

                     endif

                  enddo

                      wk(i,nny-1) = (la*(dy*gz)/dx)*temp(i-1,nny-1) +

     *                                      (la*(dy*gz)/dx)*temp(i+1,nny-1) +s*dx*dy*1.0+

     *                                      (la*(dx*gz)/dy)*temp(i,nny)

                      wk1(nny-2) = wk(i,nny-1)

     c------------- solutia sistemului ------------------------------------

            CALL TRIDAG (a1, b1, c1, wk1, temp1, nny-2)

     c-------formarea solutiei pe toate liniile verticale--------------------------------

                  do j = 2,nny-1

                     temp(i,j)=temp1(j-1)

                 enddo

                     endif

                  enddo

     c==================pentru ‘ i = nnx-1’ =========================

     c---------diagonala inferioara’a’ -------------------------------------

                do j = 2,nny-1

                   if (j .eq. 2) then

                    a(nnx-1,j) = 0.0

                    a1(j-1) = a(nnx-1,j)

                   else

                    a(nnx-1,j) = - la*(dx*gz)/dy

                    a1(j-1) = a(nnx-1,j)

                  endif

                 enddo

     c---------diagonala superioara ‘c’ -------------------------------------

                 do j=2,nny-2

                   if (j .eq. 2) then

                    c(nnx-1,j) = - la*(dx*gz)/dy

                    c1(j-1) = c(nnx-1,j)

                   else

                    c(nnx-1,j) = - la*(dx*gz)/dy

                    c1(j-1) = c(nnx-1,j)

                  endif

                enddo

                    c(nnx-1,nny-1) = 0.0

                    c1(nny-2) = c(nnx-1,nny-1)

     c----------diagonala principala ‘b’ -----------------------------------------------

                do j = 2,nny-1

                   if (j.eq.2)then

                    b(nnx-1,j) = 2.0*la*(dy*gz)/dx + 2.0*la*(dx*gz)/dy

                    b1(j-1) = b(nnx-1,j)

                  else

                   b(nnx-1,j) = 2.0*la*(dy*gz)/dx + 2.0*la*(dx*gz)/dy

                   b1(j-1) = b(nnx-1,j)

                  endif

                enddo

     c-----formarea initiala a vectorului termenului liber (wk)-----------------

                do j = 2,nny-2

                   if (j .eq. 2) then

                    wk(nnx-1,j) = (la*(dx*gz)/dy)*temp(nnx-1,j-1) +

     *                                    (la*(dy*gz)/dx)*temp(nnx-2,j) +

     *                                    (la*(dy*gz)/dx)*temp(nnx,j) + s*dx*dy*1.0

                    wk1(j-1) = wk(nnx-1,j)

                   else

                    wk(nnx-1,j) = (la*(dy*gz)/dx)*temp(nnx-2,j) +

     *                                    (la*(dy*gz)/dx)*temp(nnx,j) + s*dx*dy*1.0

                    wk1(j-1) = wk(nnx-1,j)

                   endif

                enddo

                    wk(nnx-1,nny-1) = (la*(dy*gz)/dx)*temp(nnx-2,nny-1) +

     *                                            (la*(dy*gz)/dx)*temp(nnx,nny-1) + s*dx*dy*1.0+

     *                                            (la*(dx*gz)/dy)*temp(nnx-1,nny)

                    wk1(nny-2) = wk(nnx-1,nny-1)

     c------------- solutia sistemului ------------------------------------

             CALL TRIDAG (a1, b1, c1, wk1, temp1, nny-2)

     c-------formarea solutiei pe toate liniile verticale--------

                do j = 2,nny-1

                   temp(i,j)=temp1(nnx-1)

                enddo

     c--------verificarea cu criteriul convergentei ----------------------------

                do i=2,nnx-1

                  do j = 2,nny-1

                   dif(i,j) = abs(100.0*(temp(i,j) - temp2(i,j))/temp(i,j))

                 enddo

               enddo

                 difmax = dif(2,2)

               do i=2,nnx-1

                do j=2,nny-1

                  if(dif(i,j) .gt. difmax) then

                  difmax = dif(i,j)

                  else

                  endif

                 enddo

               enddo

                   write(*,*)'iter, difmax, err', k, difmax, err

                   write(*,*)'iter, difmax, err', difmax, err

                   if (difmax .le. err) then

                   write(*,*)'sortie par critere de convergeance, k=',k

                   goto 100

                    else

                   endif

     c =========actualizarea temperaturii de la pasul precedent==================

                do i=2,nnx-1

                  do j=2,nny-1

                    temp2(i,j) = temp(i,j)

                  enddo

                enddo

     c-------bucla fina de iteratie ‘nit’ ----------------------------------------------------------------

           enddo

      100    continue

     c------------------ scrierea solutiei ------------------------------------------------------------

          OPEN(20,file='2Ds2.prn')

                do i=1,nnx

                   write(20,101)(temp(i,j),j=1,nny,2)

                enddo

          CLOSE(20)

         101   format(26(1x,F7.2))

              STOP

              END

      SUBROUTINE TRIDAG(a,b,c,r,u,n)

                 parameter (nmax = 200000)

                 integer j

                 double precision a(n),b(n),c(n),r(n),u(n)

                 doubleprecision bet,gam (nmax)

                  if (b(1).eq.0.)pause 'tridag:rewrite equations!'

                    bet =b(1)

                    u(1)=r(1)/bet

                 do j=2,n

                  gam (j)=c(j-1)/bet

                    bet =b(j)-a(j)*gam(j)

                    if (bet.eq.0.) pause 'tridag failed'

                    u(j)=(r(j)-a(j)*u(j-1))/bet

                  enddo

                do j=n-1,1,-1




                    u(j)=u(j)-gam(j+1)*u(j+1)

                  enddo

                  return

                  end

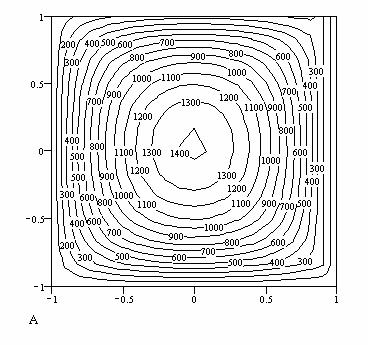

            Solutia in Mathcad:

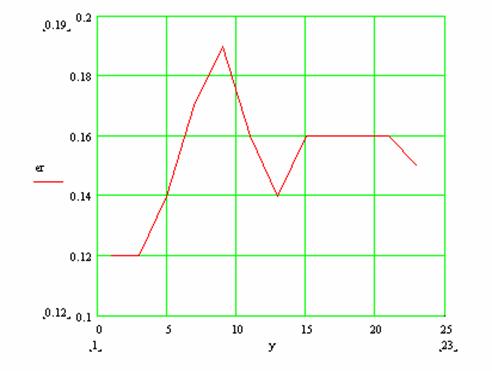

         Erorile :

x=0

y[mm]

Solutie analitica

T[K]

Solutie numerica:

T[K]

Eroare

[%]

1

  1430

  1428.2

0.12

3

  1416

  1414.2

0.12

5

  1388

  1385.9

0.14

7

  1345

  1342.7

0.17

9

  1286

  1283.4

0.19

11

  1209

  1206.9

0.16

13

  1113

  1111.4

0.14

15

  996.55

  994.9

0.16

17

  856.3

  854.9

0.16

19

  689.7

  688.6

0.16

21

  493.7

  493

0.16

23

  256

  264.6

0.15

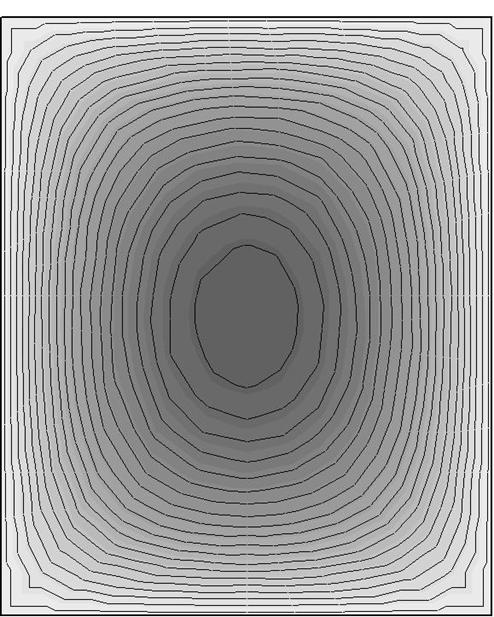

                      Distributia temperaturii in QuickField:
