WELCOME

We are pleased to welcome and congratulate you on your excellent choice.

This owner’s manual contains important information how to operate the controls and how to make the best possible use of all the motorcycle’s technical features. Please read this owner’s manual thoroughly and comply with the rules mentioned before operating the motorcycle.

If you have any question concerning your motorcycle, your dealer will be glad to provide assistance.

We hope you have a safe and pleasant journey.

Enjoy your ride!

FOREWORD

All information in this manual is based on the latest product information available at the time of approval for printing. Certain illustrations and descriptions in this manual may differ from your motorcycle, depending on each national market specification. We reserve the right to make changes at any time without prior notice and without incurring any obligations.

This manual should be considered as a permanent part of the vehicle and should remain with the vehicle whenever it is resold or possession is transferred to another person. Please take the time to read and understand this entire owner’s manual.

No part of this handbook may be reproduced without written permission.

IMPORTANT NOTICE

READ THIS OWNER’S MANUAL CAREFULLY

Pay special attention to the following symbols and statement:

!WARNING

*This indicates precautions and precautions intended to prevent damage to the motorcycle. Failure to comply could void the warranty.

NOTE:

*This indicates special information on operation and inspecting your motorcycle as well as maintenance and adjustment procedures.

·OPERATOR:

This motorcycle is designed to carry only the operator and is NOT designed to carry a passenger.

·LOADING:

Never exceed the maximum weight capacity as show non the MAIN FUNCTIONAL SPECIFICATION TABLE

·USE ONLY ON-ROAD

This motorcycle is designed to be used only on the road.

Contents

1、  User Guide

Motorcycle Identification Number …………………………………………………   1

Running In  …………………………………………………………………………   1

Varying Speed ………………………………………………………………………    1

Allow Engine Oil to Circulate Before Riding  ……………………………………    1

First Maintenance Check  …………………………………………………………    2

2、  Riding Safety                                                   2

3、  Function Descriptions                                            3

Speedometer …………………………………………………………………………  3

Odometer ……………………………………………………………………………   3

Fuel Gauge …………………………………………………………………………    3

Turn Signal Indicator Lamp ………………………………………………………    3

High Beam Indicator Lamp ………………………………………………………     3

Power On/Off Switch ………………………………………………………………    3

Steering Lock ………………………………………………………………………     4

Saddle Lock ………………………………………………………………………     4

Starter Button(For Models Equipped with Electric Starter) ………………………………     4

Light Switch …………………………………………………………………………    4

Power On/Off Button ………………………………………………………………     4

Horn Button …………………………………………………………………………    4

Turn Signal Switch …………………………………………………………………     4

Headlight Selector Switch …………………………………………………………     4

Front Rear Brake Lever …………………………………………………………   5

Main Stand ……………………………………………………………………………   5

Side Stand  ……………………………………………………………………………   5

Large Storage Compartment …………………………………………………………  6

Anti-Tempering Plate …………………………………………………………………  6

4、  Riding Methods

Starting the Engine …………………………………………………………………   6

Kick-Start   …………………………………………………………………………   6

Riding  ………………………………………………………………………………   6

Speed control ………………………………………………………………………    6

Braking  ……………………………………………………………………………    7

Riding in the Rain  …………………………………………………………………   7

Stopping and Parking  ………………………………………………………………  7

5、  Pre-ride Inspection

Steering  ……………………………………………………………………………   7

Accelerator  ………………………………………………………………………    7

Braking  ……………………………………………………………………………    7

Shock absorber  …………………………………………………………………      7

Tyres  ………………………………………………………………………………     7

Battery  ……………………………………………………………………………     7

Fuel  ………………………………………………………………………………      8

Engine Oil …………………………………………………………………………      8

Horn  ………………………………………………………………………………      8

Light  ………………………………………………………………………………      8

Side Stand Main Stand  ………………………………………………………      8

6、  Maintenance Guide  ……………………………………………………………      8

Engine Oil Change and Oil Filter Screen Cleaning  …………………………        8

Fuel Checking and Refueling  ……………………………………………………      8

Brake Pad  …………………………………………………………………………      9

Front Brake Fluid Check  …………………………………………………………     9

Tyre Pressure  ………………………………………………………………………     9

Spark Plug   ………………………………………………………………………     10

Air Filter Cleaning  ………………………………………………………………     10

Battery  ……………………………………………………………………………     10

Fuse  ………………………………………………………………………………      11

Tools ………………………………………………………………………………      11

7、  Cleaning ……………………………………………………………………………    11

8、  Storage  …………………………………………………………………………      12

9、  Maintenance Schedule  ………………………………………………………     13

10、            Main Functioned Specifications Table ………………………………   15

11、            Catalytic Converter  ………………………………………………………    16

User Guide

Motorcycle Identification Number

The motorcycle engine number is for registration use, and for the frame main tube under the front storage compantment. 1, engine numbers is located at the lower left hand side of the engine 2, Please Fill in the numbers in the box below for future referfence.


                                1

                                                                       2

Frame number:

Engine number:

Running In

If you treat your engine with prompt and adequate care from the very star, it will reward you with excellent service as well as performance for a very long period of time. A suitable running in period can extend the life of your motorcycle. Please read the following chart.

0km-500km speed35km/h

500km-2,000km speed45km/h

Varying Speed

During the running in period, you should avoid riding at a constant speed for an extended period. For the first 2,000 km, you should therefore ride at varying road and engine speeds, varying the speed will allow the engine to work at different loads thus until zing its range and capacity. This will extend the life of the engine.

NOTE

* Avoid low speed riding for an extended period.

* Any increase or decrease in speed should be done gradually.

* Avoid placing a heavy load on the engine (right at full throttle) and riding at high revs.

Allow Engine Oil to Circulate Before Riding

After starting the engine, whether the engine is cold or warm, you should wait a moment to allow the engine oil to circulate before riding. This will allow the engine oil to reach every part of engine, thus avoiding any unnecessary damage to the engine.

First Maintenance Check

The first maintenance check of the motorcycle is very important. After the running in period, all engine parts should be working properly. With some additional adjustment, a change of engine oil and air filter, you can ensure that the engine will be maintained at its best performance.

NOTE

* The maintenance part in this manual can be used as guidance for maintenance check procedures.(Please refer to page 29)

Riding Safety

This manual includes some important safety information and guidance, please read it carefully before riding.

·If this is your first time riding this kind of motorcycle, we recommend that you practice riding it in a remote or open area first until you understand all the functions of your motorcycle.

·Riding with one hand is dangerous. You should always hold the handlebar with both hands and keep your feet on the pedal.

·Reduce speed when turning a corner, obey the speed limit and traffic laws,

·When riding in wet or uneven surface, tyre grip, brake performance and the handling of the motorcycle will be affected, you should reduce speed accordingly.

·When you enter or exit a tunnel, riding through some cut away mountain slope or when overtaken by trucks or buses, you may encounter some air turbulence. Under these situations you should reduce speed and increase your awareness.

·You should always wear a helmet, gloves and goggles. Riding safety starts with a quality helmet, head injuries can be fatal. Protection of your eyes is very import. Do not wear loose clothes or clothing that will affect safety while riding.

·The exhaust fumes from the engine contains carbon monoxide that is harmful to humans, please run the engine only in places with good ventilation.

·Do not run the engine for a long period standing still, it may damage the engine due to overheating.

·The exhaust pipe is very hot even after the engine is switched off. Avoid touching it and parking the motorcycle near dry grass and/or highly inflammable materials.

·Any items placed or hung on the handlebar will affect the motorcycle’s handling and stability. You should not place or hang anything on the handlebar.

·Luggage must be securely fastened onto the appropriate compartment(if any) of the motorcycle.

·When refueling, switch off the motorcycle.

·When refueling, switch off the engine, do not smoke and do not use mobile phone.

·Any unauthorized modification to the motorcycle is dangerous.

Function Descriptions

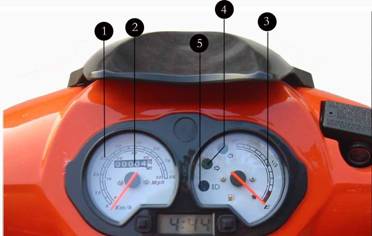

1Speedometer

This shows the speed of the motorcycle in kilometers per hour.

2Odometer

This shows the total distance traveled in kilometers.

3Fuel Gauge

This indicates the amount of fuel in the fuel tank. When the pointer is in the red zone, this indicates that the fuel is too low. Please refill the tank with Rq90 or higher unleaded petrol.

4 Turn Signal Indicator Lamp

When the turn signal light is functioning, the turn signal indicator lamp will be flashing at the same time.

5 High Beam Indicator Lamp

Turn on the headlamp when riding at night. When the headlamp selector switch is in the “   ” position, this indicates that the high beam is turned on.

6 Power On/Off Switch

OFF This position indicates that the power is cut off and the engine is turned off. The key can be removed in this position.

ON This position indicates that the power is turned on and the engine can now be started. The key cannot be removed is this position.

7 Steering Lock

To avoid theft, lock the handlebar when the motorcycle is parked.

Locking: Turn the handlebar all the way to the left, then push down and turn the key counter-clockwise and remove it.

Unlock: Insert the key, push down and turn clockwise.

CAUTION:

* After locking the handlebar, slightly turn the handlebar to ensure that it is locked. Never attempt to move the motorcycle when the handlebar is locked.

Saddle lock:

Saddle lock locates at left side under the saddle. Insert the ignition switch key and turn clockwise to unlock. To lock the saddle, please press the saddle down till it is locked. Before riding the scooter, please make sure the saddle is locked.


8 Starter Button

(For Models Equipped with Electric Starter)

Press the starter button to start the engine, release the starter button immediately after the engine has started. Do not press the starter button for more than 4 seconds each time. Do not use the starter button when the engine is running as this may damage the engine.

9 Light Switch

l       Headlight, gauges light, taillight are turned OFF in this position.

Gauges light and taillight are turned ON in this position. This can also be used as parking light.

Headlight, gauges light, taillight are turned ON in this position.

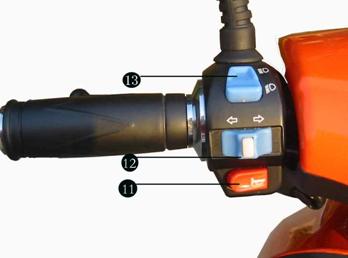

10 Power On/Off Button

   This position indicates that the power is turned on and

     The engine can now be started.

          This position indicates that the power is cut off and the engine is turned off.

11 Horn Button

When the power switch is in the “    ”position, press this button to sound the horn.

12 Turn Signal Switch

Use the turn signal switch when turning or changing lanes. When the turn signal switch is in use, the turn signal indicator lamp will blink.

Switch to this position when making a left turn

Switch to this position when making a right turn

When the power on/off switch is in the” OFF” position, the turn signal indicators do not operate.

Note:

*the turn signal switch must be turned off manually after completing the turn or lane change.


13 Headlight Selector Switch

indicates high beam

indicates low beam

When the selector switch is switched to “   ”, the high beam indicator lamp will light up.

14 Front & Rear Brake Lever

To engage the front or rear brake, pull the front or rear brake lever with your left had, the rear brake lamp will light up at the same time.

15 Main Stand

To place the motorcycle on the main stand: lower the stand by stepping on it with your right foot and hold on to the grip bar with your right hand, then pull up the motorcycle in a backwards direction and at the same time balance it with your left hand on the handlebar.


                    15



                                             16

16 Side Stand

To place the motorcycle on the side stand: lower the stand with your right foot. For models equipped with Side Stand Cutoff Switch: the engine will cutoff when the side stand is lowered.

17 Large Storage Compartment

The storage compartment is located under the seat, to open the compartment, insert the key and press down on the saddle first then pull it up.

18 Statutory Plate



The Statutory plate is located at the lower left hand side of the frame.

Riding Methods

Starting the Engine

Before starting the engine, please ensure that:

1.         Motorcycle is on its main stand

2.         Key is in the ON position 1

3.         Engage the brakes then press the start button to start the engine.2

(For models equipped with electric starter)

!WARNING

* Never run the engine in an enclosed area. The exhaust contains poisonous carbon monoxide gas that can cause loss of consciousness and lead to death.

Kick-Start 3

Pull out the kick-start pedal and turn the accelerator handle 1/8-1/4 turn step hard in the kick-start pedal to start the engine.

CAUTION:

l       After using the kick-starter pedal, return it to the inward position.

Riding

Before starting the engine, return the side stand to the upright position, turn the throttle gradually to accelerate. This scooter uses a CVT automatic gearbox, therefore it is not necessary to change gears.

Speed Control

The throttle controls the speed of the motorcycle. The speed should be increased gradually.

Clockwise-for deceleration

Anti-clockwise-for acceleration                              deceleration



                                                        acceleration

Braking

When braking, return the throttle to its original” OFF” position and apply the front and rear brakes together. The front brake lever and the rear brake lever should be applied first gradually and then bard for proper braking.

!WARNING

* Using only one brake will cause the motorcycle to slide. Hard braking and turning at the same time will cause the motorcycle to slide and fall over.

Riding in the Rain

Use extra care when riding in bad weather. In wet road conditions, the speed should be reduced and the brakes should be applied earlier, the braking distance should also be doubled.

Stopping and Parking

1.       Return the throttle to its original OFF position.

2.       Apply the front and rear brakes together, switch off the engine.

3.       Lower the side stand or main stand when parking

4.       Lock the steering to help prevent theft.

CAUTION

* Park the motorcycle on firm, level ground to prevent it from falling over.

* If you must park on a slight incline, aim the front of the motorcycle uphill to reduce the possibility of rolling off the side stand or Overturning.

Pre-ride Inspection

For safety reasons and to avoid breakdown and accidents, develop the habit of inspection before riding. Complicated problems should be carried out by a qualified dealer/service station, simple checks can be performed by the user.

1.       Steering

l         Check for smoothness in both directions

l         Check for movement restrictions

l         Check for looseness and free play

2.       Accelerator

l         Normal clearance

l         Smoothness of the accelerator

3.       Braking

l         Check the brake lever clearance

l         Inspect the brake pad for wear and leakages

l         Check if it feels too soft

4.       Shock absorber

l         Check for smoothness

5.       Tyres

l         Normal tyre pressure

l         Normal tyre tracks

l         Check tyre for wear and tear

6.       Battery

l         Normal battery fluid level

(except sealed battery)

7.       Fuel

l         Enough fuel

l         After starting the motorcycle, check the fuel gauge

8.       Engine oil

l         Enough engine oil

NOTE:

*  Check the engine oil level after turning off the engine for one minute .This will allow the engine oil to flow back to the bottom of the engine,the motorcycle should be placed on a level surface.Donot change the engine oil immediatelyafter turning off the engine because the engine oil will still be very hot.

9. Horn

    Normal sound

10.Light

   All the lights are functioning normally

11.Side Stand & Main Stand

   Functioning normally

!WARNING

l         If the pre-ride inspection is not performed properly, may result in severe personal injury or vehicle damage.

Maintenance Guide

Regular maintenance of your motorcycle is the best way to protect your investment.You will be rewarded with safer,more economical and trouble-free riding.Our authorized dealers and/or appointed service stations are able to provide after sales maintenance service.After your motorcycle has been used for a period of time, please bring it to our authorized dealer and/or appointed service station to perform an inspection every 1,000 km.

Engine Oil Change and Oil Filter ScreenCleaning  (4-stroke Engine)

Regular oil changes will contribute more to engine longevity than any other  maintenance operation will perform. Use only high quality engine oil for 4-stroke engines with an APL rating of SE, SF, or SC, The factory recommendsSAE15W-40 grade engine oil. Change the engine oil after the first 300km, then changethe engine oil and clean the oil fiter screen every 1,000km, following the procedure below.

1.       Place the scooter on its main stand and on a level surface.

2.       Remove the dipstick 1 from the engine, this will speed up the flow of oil.

3.       Place a drain pan under the engine drain plug.

4.       Remove the drainplug 2 and let the oil drain onto the pan.

5.       Refill the engine with new engine oil (approximately 0.8litre). mark.

6.       Reinstall the dipstick and start the engine for a few minutes, then turn off the engine.

7.       Remove the dipstick, wipe it clean, put it back into the engine and pull it out again to check for correct oil level.

CAUTION:

*  Take caution when changing engine oil from a hot engine to avoid scalding.

*  Running the engine with insufficient oil pressure may cause serious engine damage.

*  Used engine oil may cause skin cancer if repeatedly left in contact with the skin for prolonged periods. Although this is un likely unless you handle used oil on a daily basis, it is still advisable to thoroughly wash your hands with soap and water as soon aspossible after handing used oil.


                      1

Engine oil must be changed more frequently on motorcycle normally used under severe riding conditions. Severe riding conditions include:

 Riding on rough and/or muddy road.

  Repeated short distance riding.

  Riding in severe cold weather.

Engine Oil Type

SAE30         Above 15

SAE20         0 to 15

SAE10W       Below 0


WELCOME

Fuel Checking and Refueling 3

● When the fuel gauge pointer reaches the red zone, remaining fuel in the fuel tank is limited, you should refuel as soon as possible.

● Open the fuel cap by turning it in a counter lockwise direction. After replace the fuel cap making sure it is tightly closed.

!WARNING

* The engine must be turned off every time during refueling.

* Petrol is extremely flammable and is explosive under certain conditions. Do not smoke or allow flames or sparks in the area where petrol is stored or where the fuel tank is being refueled.

* Do not overfill the tank. After refueling, make sure the fuel cap is securely closed. Be careful not to spill fuel when refueling. Spilled fuel or fuel vapor may ignite. If any fuel is spilled, make sure the area is dry before starting the engine.

* Avoid repeated or prolonged contact with skin or breathing of vapor. KEEP OUT OF REACH OF CHILDREN.

Brake Pad

Inspect the brake pads for wear, if the brake pads has reached its wear limit, please have them checked and replaced by a recommended dealer and/or appointed service station without delay.

Front Brake Fluid Check 4

(For Models Equipped with Front Disc Brake) Brake fluid in the container must be kept above the minimum level mark. When the brake fluid level reaches near the minimum level make, you must inspect the condition of the brake pad.

!WARNING

* Always check the free play of the front and rear brake. Adjust the nut when necessary, After adjusting the nut, make sure that it is secured tightly to avoid any changes when the motorcycle is being ridden. Ride slowly at first to ensure that the brakes are working properly.


                                                      4

Tyre Pressure

Correct tyre pressure is very important to the safety and handling of the motorcycle. Tyre pressure should be checked before every ride. When the motorcycle is being ridden, the tyretemperature, and with it the tyre pressure, will change as a function of speed and load. For this reason, tyre pressure should normally be checked andadjusted only when the tyres are cold.

Normal Tyre Pressure(cold)

             Front Tyre          Pear Tyre

1  person    2.5/2                   2.5/2

                       250 Kpa            250 Kpa

!WARNING

* Improper tyre inflation will cause abnormal treadwear and create safety hazard. Under inflation may result in tyre slips or coming off the rim and may result in a loss of vehicle control.

* Never overload the motorcycle above the maximum recommended load.

Overloading will damage the tyres and affect the handling of the motorcycle.

* Remove any particle imbedded into the tyre tracks.

* Check tyres for wear and tear and if tracks are worn out or the rubber hardened, replace tyres immediately.

* The use of tyres other than those listed on the technical data may adversely affect handling.

Spark Plug

Carbon deposit and incorrect gap size of the spark plug can cause the engine to misfire.Use spark plug cleaning tools or a wire brush to clean the spark plug. After cleaning, adjust the spark plug gap to 0.6-0.7mm .

Recommended spark plug:

CAUTION:

* The spark plug must be securely tightened. An improperly tightened plug can become very hot and possible damage the engine.

* Never use a spark plug with an improper heat range, this may result in severe engine damage.

Air Filter Cleaning

A dirty air filter will cause a reduction in engine power and an increase in fuel consumption. To clean the air filter element:

● Remove the screws from the air duct A dirty a

● Remove the screws securing the air filter cover and remove the cover.

● Replace or clean the air filter element.

CAUTION:

* Inspect the element before installation. Adamaged air filter element will allow dirt and dust to enter the engine, causing extensive engine damage. Never operate the engine without the air filter element installed.

Battery

Maintain the correct amount of battery fluid (except sealed battery).

The battery will discharge itself when it is unused for an extended period of time. Under this circumstance, disconnect or remove the battery and leave it in a cool and dry place.

CAUTION:

Do not open the cover of a sealed battery.

!WARNING

* The battery gives off explosive gases; keep spaeks, flames, and cigarettes away. Provide adequate ventilation when changing or using the battery in an enclosed area.

* The battery contains sulfuric acid (electrolyte). Contact with skin or eyes may cause severe burns. Wear protective clothing and a face shield.

* If electrolyte gets in your skin, flush with water as soon as possible.

* If electrolyte gets into your eyes, flush with water for at least 15 minutes and consult a physician immediately.

* Electrolyte is poisonous. If swallowed, drink large quantities of water or milk and follow with milk of magnesia or vegetable oil and consult a physician.

*  KEEP OUT OF REACH OF CHILDREN

Specifications:

Battery            12V 4AH

Charging current    Standard charge 0.7A

                 Quick charge 3.0A

Charging time      Standard charge 5-10 hours

                 Quick charge 30 minutes

 Fuse

Spare fuse is located under the plastic corver of the Footrest. Open the fuse box cover and remove the broken fuse.

Replace it with a new fuse, check that the new fuse is properly installed and replace the cover.

Fuse specification: 15A

CAUTION:

* Turn the ignition switch OFF before checking or replacing the fuse to prevent accidental short-circuiting.

*  Never use a fuse with different rating from that specified. It may result in serious damage to the electrical system, causing fire and loss of lights or engine power.

*  If this kind of fuse cannot be found, contact your authorized dealer and/or service agents.

Tools

The tools are located under the seat.

Cleaning

Clean you motorcycle regularly to protect the surface finishes and inspect damage, wear, and oil, coolant or brake fluid leakage.

CAUTION:

* High-pressure air or water spraying can damage certain parts of the motorcycle.

Avoid spraying high pressure water at the following areas:

Ignition switch         Muffler outlet

Instruments            Headlight

Handlebar switches      Wheel hubs

NOTE:

* Clean the headlights lens and other plastic parts using a cloth or sponge dampened with a solution of mild detergent and water. Rub the soiled area gently rinsing it frequently with fresh water.

* The inside of the headlight lens may be clouded immediately after washing the motorcycle. Moisture condensation inside the headlight lens will disappear gradually by lighting the headlight in high beam. Run the engine while keeping the headlight on.

* Strong detergent residue can corrode alloy parts

1. After cleaning, rinse the motorcycle thoroughly with plenty of clean water.

2. Dry the motorcycle, start the engine, and let it run for several minutes.

3. Test the brakes before riding the motorcycle.



Storage

Short-term

Always store your scooter in a cool, dry place and , if necessary, protect it against dust with a porous cover.

CAUTION:

* Storing the scooter in a poorly ventilated room or covering it with a tarp, while it is still wet , will allow water and humidity to seep in and cause rust.

* To prevent corrosion, avoid damp cellars and areas where strong chemicals are stored.

Long-term

Before storing your scooter for several months:

1.       Follow all the instructions in the Cleaning section.

2.       Drain the carburetor float chamber by loosening the drain bolt; this will prevent fuel deposits from building up. Pour the drained fuel into the fuel tank.

3.       Fill up the fuel tank and add fuel stabilizer (if available) to prevent fuel tank from rusting and the fuel from deteriorating.

4.       Perform the following steps to protect the cylinder, piston rings, etc. from corrosion.

a.       Remove the spark plug cap and spark plug.

b.       Pour a teaspoonful of engines oil into the spark plug bore.

c.       Install the spark plug cap onto the spark plug, and then place the spark plug on the cylinder head so that the electrodes are grounded.(This will limit sparking during the next step)

d.       Turn the engine over several times with the starter.(This sill coat the cylinder wall with oil.)

e.       Remove the spark plug cap from the spark plug, and then install the spark plug and the spark plug cap.

 !WARNING

To prevent damage or injury from sparking, make sure to ground the spark plug electrodes while turning the engine over.

5.       Lubricate all control cables and the pivoting points of all levers and pedals as well as the sidestand and mainstand.

6.       Check and, if necessary, correct the tire pressure, and then life the scooter so that both of its wheels are off the ground Alternatively, turn the wheels a little every month in order to prevent the tires. from becoming degraded in one spot.

7.       Cover the muffler outlet with a plastic bag to prevent moisture from entering it.

8.       Remove the battery and fully charge it. Store it in a cool, dry place and charge it once a month, Do not store the battery in an excessively cold or warm place [less than 0°C(30°F)or more than 30°C(90°F)].

NOTE: * Make any necessary repairs before storing the scooter.

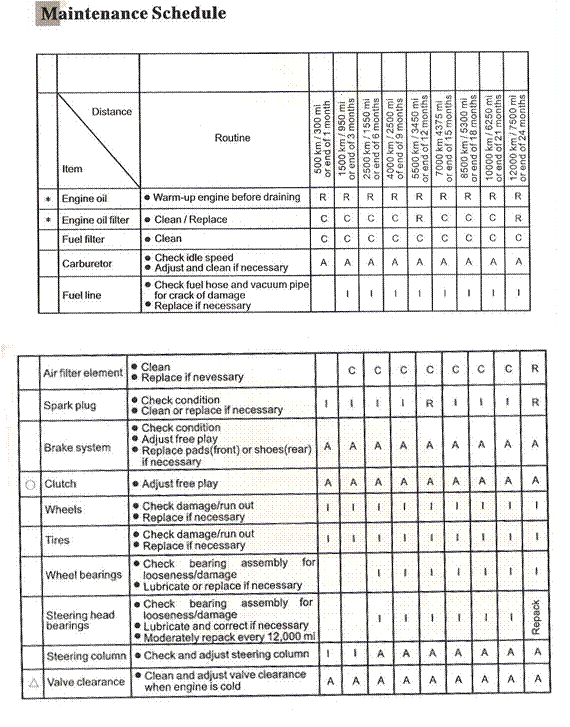

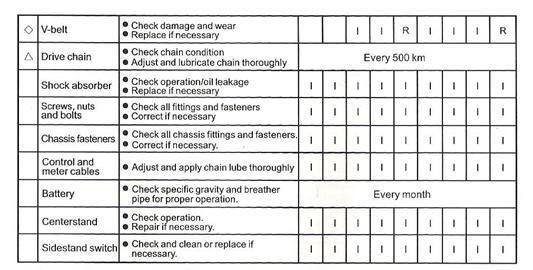

I:  Inspect, if necessary, clean, lubricate, refill, repair or replace.

A: Adjust

C: Clean

R: Replace

*  Applicabie to 4-stoke engine

◇ Applicabie to scooter type engine only

△ Applicabie to motorcycle type engine

Applicabie to motorcycle with manual clutch

NOTE:

The air filter needs mire frequent service if you are riding in unusually wet or dusty areas.

For odometer reading higher higher than 12,000km(7500 mi) or end of 20 months, follow the maintenance chart under the 1,500km(950 mi) or end of 3 months interval.

Main Functioned Specification Table

Engine                         Tyre

Type     4-stroke, single cylinder,     Size:

              Forced air cool, 2 valve          Front        110/70-12-47J

Bore & stroke    39.0mm                     Rear         110/70-12-47J

Displacement    49ml                     Pressure(cold):    1 person

Compression ratio 10.5:1                       Front     2.5kg/cm 250Kpa

Ignition system    CDI                      Rear     2.5kg/cm    250Kpa

Maximum power  2.0kW/7500 min            Brake

Maximum torque  2.6N.m/6000 min               Front             Disc

 Power Transmission                            Rear              Drum

     Gearbox     CVT                     Dimensions

 Suspension                                   Overall length

     Front  Oil damped telescopic fork      Length:                1840mm

     Rear   Oil damped coil spring         Width                   680mm

                                       Height                 1140mm

                                       Wheelbase:             1285mm

  Weight

Dry weight                          77kg

Capacities

Engine oil:                        0.8 liter

Fuel tank:                        4.0 liter

Maximum Weight Capacity:          150 kg

Electrical

Battery         12V 4AH

Charging Current    Standard charge 0.7A

                  Quick charge 3.0A

Charging time       Standard charge 5-10 hours

                   Quick charge 30 minutes

Fuse              15A

Catalytic Converter (For models equipped with EEC Type Approval)

This motorcycle is equipped with a catalytic converter. The catalytic converter contains precious metals that serve as catalysts, promoting chemical reactions to convert the exhaust gasses without affecting the metals.

The catalytic converter acts on HC, CO, and NOx.

The catalytic converter must operate at a high temperature for the chemical reactions to take place. It can set on fire any combustible materials that come near it. Park your motorcycle away from high grass, dry leaves, or other flammables.

A defective catalytic converter contributes to air pollution, and can impair your engine’s performance. Follow these guidelines to protect your motorcycle’s catalytic converter.

Always use unleaded petrol. Even a small amount of leaded petrol can contaminate the catalyst metals, making the catalytic converter ineffective.

  Keep the engine tuned-up.

Have your motorcycle diagnosed and replaces if it is misfiring, backfiring, stalling or otherwise not running properly.

DISTRIBUIE DOCUMENTUL

Comentarii


Vizualizari: 551
Importanta: rank

Comenteaza documentul:

Te rugam sa te autentifici sau sa iti faci cont pentru a putea comenta

Creaza cont nou

Distribuie URL

Adauga cod HTML in site



Termeni si conditii de utilizare | Contact
© SCRIGROUP 2019. All rights reserved
