USB Cables Instruction for
SONY Ericsson Series
Software function:
edit logo, ring tone and phone book, realize high- speed data transform synchronization,
receive and transmit multimedia messages, and support GPRS.
Support types: P800/802,P900/908/,T266/266s,T230Series,T300/306,T310/312/316,T630/628,T68,Z200/208,Z600/608,T618
and so on.
Software Install：
Insert the CD to
CD-ROM, open it and find the ImageEditor_2.0.0, the setup.exe of ESM multimedia
message Sony Ericsson MMS Home Studio, the setup.exe of dial-up network wizard Install,
synchronization software Package1_1.5.10.21, then click to setup.
Note ：
1. Before you install
the synchronization of phone book, you must run Microsoft Outlook（make sure it is not the outlook of operation system ） and all
setting is right firstly.
2. You must restart your operation system after finished
installing, and then you can use this software.
Software application：
1
GPRS

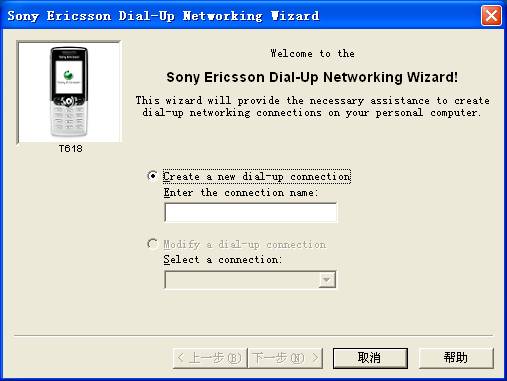

①Insert SIM card，power phone on，then use USB cable to
phone and computer. Click the icon
on the desktop to enter GPRS network setting
and COM port setting. If you r connecting is correct, then pop up a window
shown as figure 1, enter the relative GPRS parameter to right place, and then
you can use GPRS network setting. Please consult local telecom department for detail
parameter.
figure 1

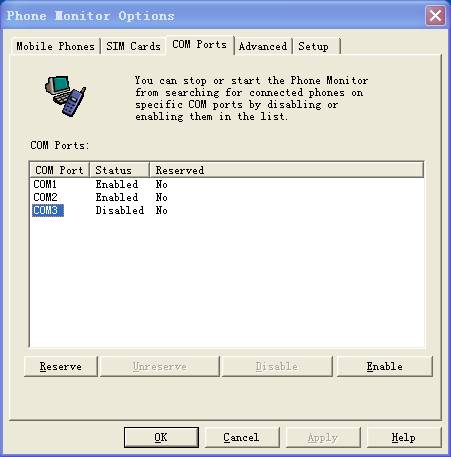

② If
you fail to find your phone， open my computer ->property->hardware->equipment
management, find the COM port that is converted from USB , pay attention to the
number of the port in equipment management，click
setting settingand select COM in the window which pop up after failing to
connect shown as figure 2. In the figure 2 select COM3 port ，the state is forbidden state，after clicking it becomes startup state，(you
can forbid the other ports) then click
icon again to start GPRS network setting.
When you run other program and fail to find your phone, you can repeat
this setting.
Figure 2
2 Image Editor

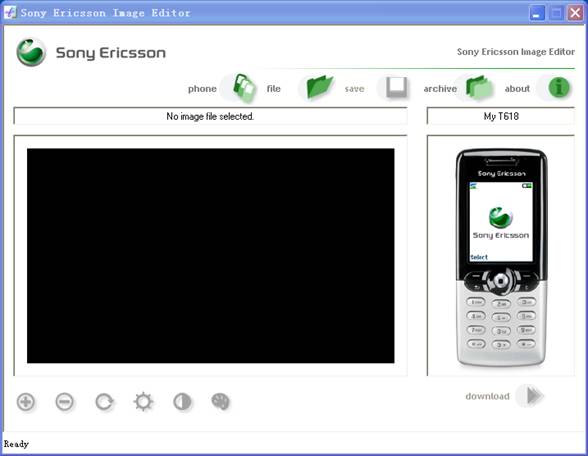

① Insert
SIM card to phone，power
phone on，use USB cable to
connect phone and computer ，click
to edit image. Pop up a window show as
figure 3.
Figure 3
② Click
phone to select your phones type. Following we take T618 as example.

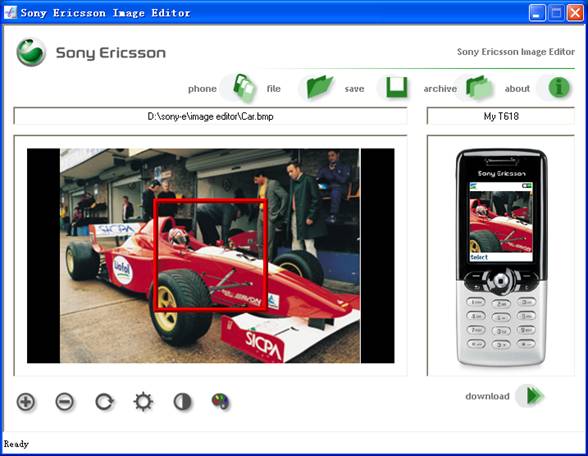

③ Click
file to select the picture to upload（you
can download from network），and to edit shown as figure 4.
Note: If the phones connection is in normal, then the button of download
is green; if it is gray, it means the
connection is out of order, so you must repeat the COM port setting.
④ The red frame of the window
is the selecting frame. There are 6 editing controls under the selected
picture:
: amplify;
: lessen;
: rotate;
:
adjust intensity;
:
adjust contrast;
:edit
color.
⑤ After adjusting, click
to save.
⑥ After finishing editing, click
to
download, then phone will display picture message. You
can select accepting or refusing. It is successful to transmit edited image.
Figure
4
2
Multimedia Message
Settings

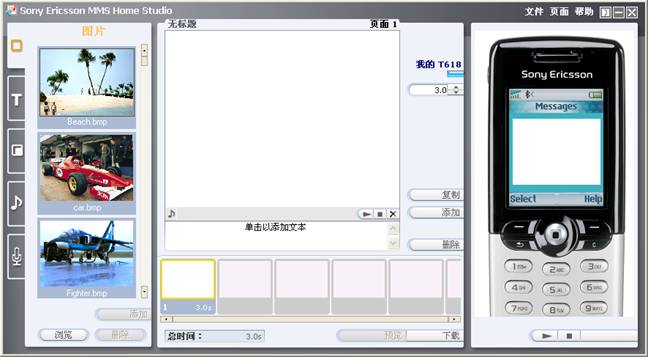

① Find the icon
and open, then pop up a interface shown as
figure 5:if the connection is correct, then the color
of download button is black, otherwise it is gray.
② You can select more pictures and more ring tones to
download. After finished, you can find the download files in phone
message->multimedia messages -> template.
Figure 5

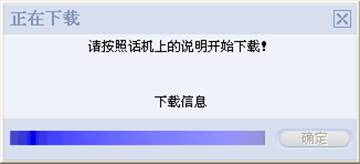

③ Click
to select the picture you want to transmit and
then double click or click
(add) to make the picture appear in the middle of
interface(it also appears in the LCD of phone in the right).Then click
download, pop up a window shown as figure 6. phones
LCD appear 刚到项目(New
item), click 是 (YES)
to download. After finished, computer will prompt 下载完毕(Finish
download). If the transmission is out of work during transmitting, computer
will prompt 传输中断(Transmit interrupt).
Figure
6
④ Click
to edit text. If
the picture is selected then text message will appear on the picture. You can edit
text in the text frame such as changing front and so on. The download process
is the same as picture download.
⑤,click
to add ring tones, after
selecting ring tones, you can pre-listen for example: Select
, click
to pre-listen, click
to delete. The download process is the same as
download pictures.
4
Data synchronization

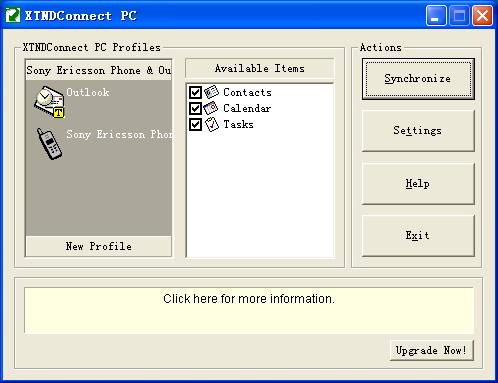

① find the icon
and double click it, then show a interface as figure
7.
Figure 7

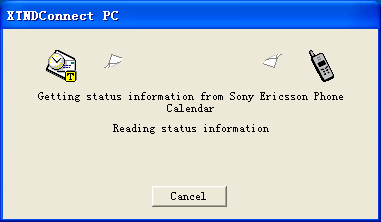

②
Click synchronize, phone show synchronizing
and computer pop up a window shown as figure 8.
Figure 8
At last, it prompts finish synchronizing..
③
Then you can open the outlook of office, click
contacts, and then outlook show up the content of your phone.
④
Click any contact to edit, and
save changes to computer. Then you can save it to phone by means of
synchronization. It is OK after your phone prompted the changes of information.
