Preparing the Engine

Surely one of the delightful benefits of turbocharging is the fact that a turbo can combine forces with a 'good, stock' engine and produce terrific results, That does not imply that careful preparation of the engine would not offer re­turns commensurate with the effort expended. To do the job right means pre­paring the engine only to the extent that performance objectives require. Any engine built anywhere by anybody (OEM, that is) will withstand the rigors of a properly set up 5 psi of boost. Therefore, 'doing the job right' at a performance objective of 5 psi means you need a 'good, stock' engine. One should not, how­ever, expect the 'good, stock' engine to survive the performance regimes of 50 psi Formula 1 turbo engines. Further, one should not waste elaborate prepara­tion on an engine only to run wimpy boost pressures. Balancing performance objectives with engine preparation is the subject pursued in this chapter.




Deciding on Specific Objectives

Desired power translates to a boost pressure range required to achieve that power. Engine preparation needed to permit those boost pressures can be re­duced to a group of generalities. Certainly, many engines have specific require­ments and weaknesses, A literature search for any given engine will usually turn up a wealth of information, probably far more than needed.

Compression Ratio

In outlining engine performance desired, the first decision is the compression ratio. Compression ratio affects a large number of performance and driveabil­ity factors. Throttle response, economy, bhp per psi of boost, and that intangi­ble, sweet running condition associated with engines eager for action are some of the performance factors determined in large part by the compression ratio.

Fig. 13-1. Approximate boost-pressure allow­ables for varying fuel octanes attd engine compression ratios

Do not be hasty to lower compression ratios just because most OEMs like to do so. The proper compression ratio for the job is determined by lengthy ther­modynamic calculation and comprehensive testing. All that good technology has its place, but usable numbers can be generated by some experience and will hold for most general applications. The two largest influences on compres­sion ratio are boost pressure desired and intercooler efficiency. Fuel octane certainly plays a big part, but we are usually limited to using commercially available pump gasoline.

** RULE: A turbo engine must never be reduced to a low-compression slug.

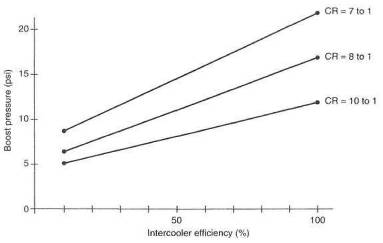

Fig. 13-2. Approximate boost-pressure varia­tion as a function of compression ratio and intercooler efficiency

Calculating a compression ratio change. To calculate a compression ratio, we must know the displacement volume and clearance volume (see glossary)

or

where

= displacement volume

= clearance volume

Some minor manipulation of the equation will put it into a form that allows easy calculation of clearance volumes for specific compression ratios.

Example:

400 cid V-8 with CR of 11.0 to 1

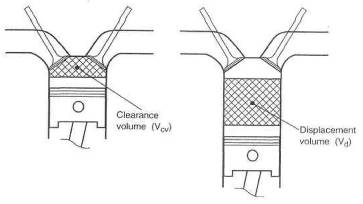

Fig. 13-3. Defining the compression ratio

To change the CR to 8.5 to 1, the new clearance volume will be

Clearly then, to get from the 11.0 to 1 compression ratio to the 8.5 to 1 ratio, 6,67-5,0, or 1.67 cubic inches, must be added to the combustion chamber vol­ume. How one adds this volume can vary, but the math remains that easy.

Changing a compression ratio. A variety of methods exist to change a com­pression ratio. Almost all are unacceptable. The crux of the matter is upsetting the 'squish volume' around the rim of the chamber A chamber is designed so that the charge is pushed toward its center as the piston achieves top dead cen­ter. This is perhaps the strongest deterrent to detonation designed into the system, as it tends to either eliminate end gas or keep charge turbulence high. This squish volume is a rim about .3 to .4 inch wide around the chamber, and approximately .04 thick—a big, washer-shaped volume between piston and head. Consider 'squish volume' sacred and do not tamper. It is possible to err so badly in removing the squish that a resulting 7-to-l compression ratio may ping worse than a 9-to-l with proper squish. Clearly then, choices for reducing compression ratio are limited to opening up selected parts of the head side of the chamber, installing a new piston with a dish in the center, or remachining the original piston to create a dish. It is perhaps a little risky to undertake re-machining a combustion chamber, because the thickness of the material is usually unknown. Furthermore, chamber shapes are closely controlled fea­tures of most modern engines. If the chamber must be recut, ultrasonic inspec­tion can determine the material thickness. Commercial inspection service companies frequently offer this service. An entirely new piston, with the re­quired dish that maintains the squish volume, is a proper approach. Machin­ing a dish into the original piston is sound, provided the top thickness is adequate. A reasonable rule would require the top thickness to be at least 6% of the bore. Approaches to lowering the compression ratio that do not work are thicker head gaskets and shorter connecting rods.



Preparing the Cylinder Head

Cylinder head preparation is once again a function of the engine's purpose. A good street turbo engine is usually quite comfortable with a completely stock cylinder head. On the other hand, a full-fledged turbo racing engine will re-quire complete preparation consistent with the type of racing intended.

If the opportunity to prepare a street head presents itself, attention should center largely around assuring that the head is in excellent condition. Flatness of the head gasket surface is of obvious importance. A minimum truing cut would be advisable. All holes should be chamfered and all threads chased with a sharp tap. Every edge and every corner should be deburred. Inspect for cast­ing flash and casting process roughness and remove accordingly. The combus­tion chambers should be deburred and all edges radiused or blended into the surrounding material. All unengaged spark plug threads should he removed. The purpose is, of course, to eliminate hot spots that could serve as potential ignition sources. The valves themselves should receive similar attention. The quality of the valve seating surface must be first class. Here is the place to spend a little extra money and insure good sealing against the higher pres­sures induced by the turbo. Quality work on the valve seats will also conduct slightly more heat out of the valves.

Intake and exhaust ports should receive preparation consistent with the ob­jectives of the engine. With a mild street engine/turbo system, a cleanup and matching of ports is logical. Competitive situations are different Airflow rates through turbo engine ports far exceed those through atmo ports; therefore, imperfections cause considerably greater drag. Turbo heads used for competi­tive events consequently merit a higher degree of port preparation.

Inspect the manifold mating faces for flatness, and remachine as required. Seldom is there any requirement to improve sealing at the intake manifold gasket. A boost pressure of 14.7 psi (on the inside pushing out) is virtually the same as the pushing 'in' with a manifold vacuum of 30 inches (brought about by backing off the throttle at high rpm). Vacuum and pressure are, to a limited degree, the same thing—they're just pushing in different directions.

Preparing the Cylinder Block

Seldom will a cylinder block need special attention just because a turbo enters the scene. A good stock block will serve most applications well. But somewhere between higher performance, longer durability and plain old pride of work­manship exists a logical reason to give thought to cylinder block preparation.

Vat the block in hot solvent for convenience of handling, deburr everything, and retap all threads. Decks must be flat. Insure that the decks are equidistant from, and parallel to, the crank center line. Crank bores must be concentric and round. It is extremely important that cylinder bores be round. Vat the block again when all the above is done, to make sure it really is clean.

If one characteristic of a cylinder block could lend a hand to the turbo appli­cation, it would be rigidity of the deck surface.

Head Gasket Improvement

The thought of trying to improve a head gasket should nut imply that the head gasket is a weak link. A new stock head gasket, mated to flat surfaces and ac­companied by properly torqued head studs, is a good joint. Head gaskets in general do not tend to ''blow.' Rather, one could say that detonation will blow anything, and the head gasket is often the first thing standing in line. Almost always, the most effective cure for blown head gaskets is control of detonation. Clearly, however, maximum-effort engines must be equipped with maxi­mum-effort head gaskets. Several methods exist for substantially improving a stock head gasket. The fundamental idea is to offer some form of motion barri­er that will help the gasket stay put if it is subjected to a few detonation blasts. This barrier usually takes the form of an interlock or mechanical barrier, as shown in figures 13-5,6, and 7.

Fig. 13-4. Performance head gaskets. Top: The steel wire ring provides maximum combustion sealability but may brinell aluminum heads. Bottom, left: The pre-flattened steel wire ring has the strength of steel wire sealing with minimum brinelling of aluminum heads. Bottom, right: The copper wire ring will not brinell alumi­num heads and offers superior heat dissipation from combustion hot spots.

Fig. 13-5. Head gasket improvement by a groove without an O-ring

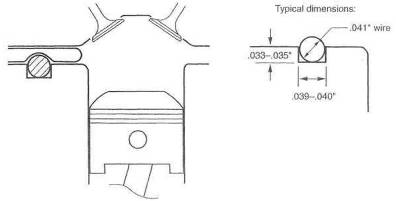

Fig. 13-6. Head gasket strengthened by an O-ring

Fig. 13-7, Head gasket strengthened by a double O-ring

Improving Head Clamp-up

An improved head-bolt system can permit greater clamping loads between head and block. The first serious improvement should be to replace bolts with high-strength studs. A properly anchored stud, with its shank bottomed out in the block, will always prove a superior fastener system to a bolt tightened into the block.




** RULE: A head bolt is an accountant's decision, A head stud is an engineer's decision.

It is reasonable to install head studs of the next size up and gain the additional clamp-up force available from higher torque values. Serious fore­thought should be given  to upper-cylinder distortion caused by larger fasteners with higher torque-ups.

Torquing the Head Fasteners

The purpose of tightening a bolt, or a nut on a stud, is to put tension into the shaft of the bolt or stud. The extent to which torque gets converted to tension is almost solely dependent on the friction between the threads of the stud and the threaded hole and the friction between the washer and nut. To achieve maximum tension in the shaft for a given torque, friction must be reduced to a minimum.

Fig. 13-8. Studs will always hold a head on better than bolts.

This is accomplished by making sure the threads are in perfect condition and the bottom side of the mat is smooth. This limits the number of times a bolt or stud is used, because it becomes scored, gouged, or otherwise damaged. Three times is probably stretching it.

A second and most important means of reducing friction is a proper lubri­cant on the threads and between the bottom of the nut or bolt head and the top of the washer, Molysulfide lubricants are best. Light oil will do in a pinch. Con­sult the shop manual or fastener suppliers for torque values. Unless otherwise specified, these values are for clean, dry threads. When using molysulfide, all specified torque values must be reduced by 10% because of molysulfide's ex­treme lubricating qualities. Light oil requires torque values to be reduced by about 5%. Lubricating these surfaces is of such extreme importance that if for­gotten, one must redo the job before start-up.

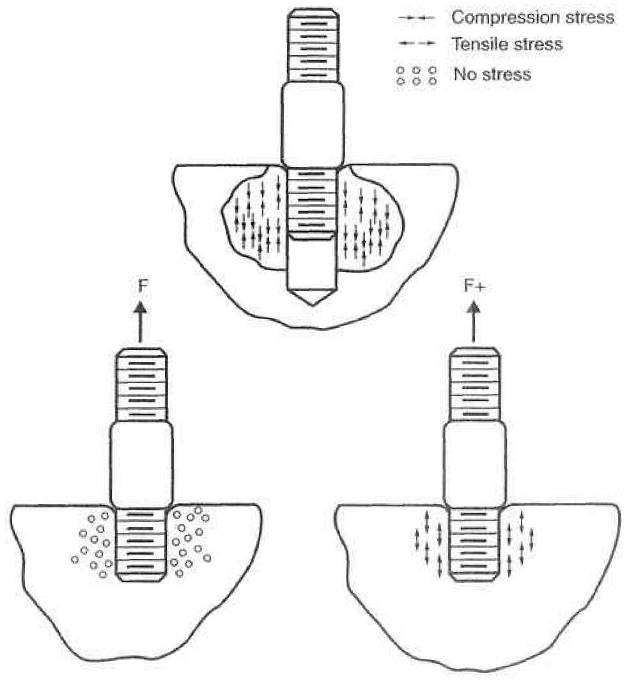

Fig. 13-9. Top: When a stud is torqued up, the shank bottoms out on the chamfer. The stud's threads pall on the shank, inducing compressive stress in the surrounding base metal. Bottom: An upward force applied to the stud pulls the compressive stress back to zero before inducing tensile stress, resulting in lower net tensile stress.

Turbo Pistons

The piston is the weak link in a turbo engine. When turbo system functions go astray, it is the poor piston that usually gets beat up. Heat and heat-induced detonation are the two things that do the most damage to the piston. These two enemies can best be resisted by high-temperature-strength material, the mechanical design of the piston, and heat removal.

Piston materials. Forged aluminum, cast aluminum hypereutectic, and T6 heat-treated hypereutectic alloys are common choices in piston materials. Forged aluminum is, in some cases, considerably stronger than the cast mate­rial. It is not, however, without its own peculiar problems. Forged alloys are similar in strength to T6 hypereutectic alloys, with the hypereutectic having the advantage in the ring land area, where great strength is most important.

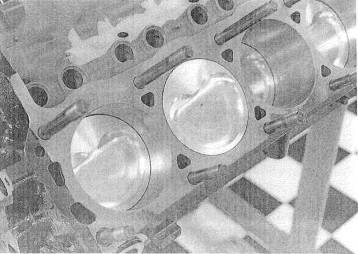

Fig. 13-10. A good turbo piston will have thick, strong ring lands.

Forgings do have the downside characteristic of needing slightly greater wall clearance. Large wall clearances can destroy a piston in small increments dur­ing the engine warm-up cycle. If too great a clearance is used, life expectancy can about equal that of an overloaded cast piston. Some of the more modern forgings have conquered the wall clearance problem and make excellent pis­tons. The problem is, of course, knowing exactly what you have.

Hypereutectic alloy pistons are cast aluminum alloy with a high percentage of silicon. Their most useful characteristics are lower thermal expansion and reduced heat transfer The jury is still sequestered, but it will probably reach a favorable decision. Clearly, these pistons merit investigation prior to choosing the best part for your engine application.

The decision should actually be based on three things: percent increase in the rpm limit, boost pressure, and the presence of an effective intercooler. Keep in mind that inertial loads in pistons skyrocket with increasing; revs, more boost makes more heat, and good intercoolers take out heat. It's all a judgment call. Unless circumstances are highly unusual, street cars with stock redlines will prove more successful with cast pistons. Forgings should be re­served for the high revvers, while T6 hypereutectic alloys can cover almost all requirements.

** RULE: Do not rush to the forged piston store every time a turbo engine needs preparation.

Mechanical design. A specially designed turbo piston will be somewhat more robust overall than a piston destined for lesser duty. The area of most concern is the thickness of the ring lands. Ring land area is the focus of most of the pounding that knock gives a piston. The thickness of these lands must be a minimum of twice that employed on pistons for atmo engines. Often the de­tails of a turbo piston will include better heat escape routes from the piston crown to the sidewalls.



Heat removal. One way to increase the strength of the piston is to reduce its operating temperature. Two methods seem viable in accomplishing this; ce­ramic coating on the piston top and/or oil spray on the bottom. With ceramic barriers, it is acceptable for charge temperatures to rise slightly as a conse­quence of less heat entering the piston. Bear in mind that charge heat is the cause of detonation. Oil spray on the bottom of the piston has proven workable on vehicles as varied as M-B diesels and early '80s Grand Prix cars.

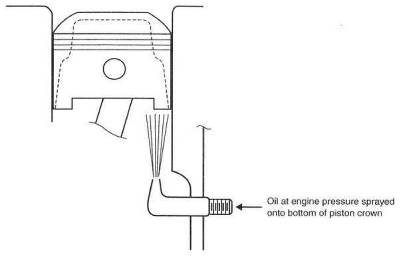

Fig. 13-11. Oil spray onto the bottom of the piston reduces the piston's operating temperature, increasing its strength.

Although not an easy installation, oil spray should be given the nod first. It should be ac­companied by an increased-capacity oil pump, or at least by a stiffened oil pump relief- valve spring. Nozzle diameters will need some experimentation, but .03 inch should be a good place to start.

The rush to ceramic coat everything that sees fire in the engine is, in this writer's opinion, a bit premature. Keeping heat out of the piston is generally desirable. Conducting heat out of the chamber is equally desirable, 1 feel quite capable of arguing both sides eloquently. Two things are clear: First, if the det­onation characteristics of the combustion chamber can stand more heat left in the chamber by ceramic coatings, then raise the compression. Second, when Formula 1 engines use ceramic coatings and we are permitted to know that, we should, too. Until that time, ceramic coat the exhaust port from the valve to the manifold face and get on with other details.

Balancing the Assembly

The turbo has little regard for mechanical smoothness. The fact remains that any engine destined for high-performance preparation gets a complete and thorough balancing, or the end user is simply not serious.

Camshafts

Make no mistake in the fact that turbo performance cams are very different from atmospheric performance cams. The characteristics of long duration and high overlap for atmo cams are unwelcome in a turbo system. The street turbo, which is generally small, operates with exhaust manifold pressure somewhat higher than intake boost pressure. This situation, when presented with long-duration, high-overlap cams, creates a huge amount of reversion. Thus the 'turbo cam' tends to become a low-duration, very limited overlap cam.

** Rule: It is hard to find a turbo cam that works better than the stock item.

Related Systems

The selection of such Items as valve gear, connecting rods, bearings, and rod bolts is independent of the turbo. These items should be selected based on ex­pected rpm limits. In general, stock equipment will prove adequate for virtual­ly any turbo system that keeps rpm limits within the original manufacturer's recommendation.

Fig. 13-12. Overlap in the turbo cam should be held to a minimum.

And Furthermore . . .

What is the best compression ratio for a turbocharged engine?

There is no such thing as the best or ideal compression ratio. The simple fundamentals are

the lower the compression ratio, the easier it is to produce a lot of boost with no detonation

the higher the compression ratio, the greater the fuel efficiency and nonboosted response

Suppressing detonation is more difficult with a high compression ratio. For all practical purposes, one is forced to use the compression ratio of the stan­dard engine. Serious efforts with intercooling make this both possible and practical.

Is it necessary to change the cam ?

No, decidedly not. Stock cams usually work excellently. For the absolute last word in a super-boost (15 psi) performance turbo car, a change of cam will be necessary, but so will several other things. Leave the stock cam alone and you will generally be much happier.

Will I have to modify the cylinder head or rework the value tram?

No on both counts.

Will I have to use a special head gasket?

Head gasket strength varies tremendously from engine to engine. It is nec­essary that the stock head gasket be in stock condition. If it is in proper order and the head bolts are properly torqued, boost pressure will seldom dislodge the gasket. Special head gaskets and O-rings are often cures to the wrong problem. They are only poor excuses for not dealing properly with detonation. If detonation is the problem, cure it, and a stock head gasket will usually per­form well.
