Version 2.0
Version 2.0 works only
with special proprietary hardware.
There are two version of interface: SmartVAG (Serial) and BlueVAG (Bluetooth).
SmartVAG and BlueVAG contains embedded firmware that implements high reliable
proprietary protocol and guarantee very fast and stable ECUs connection, they
also works as dongle for VAG-Check 2.0 activation. Interfaces are user firmware
upgradable to guarantee your investment for the future.
You can buy your 2.0 compatible interface here.
VAG-Check 2.0 is NOT compatible with old Optocoupler/MAX232 based interface!
|
|
|
|
|
SmartVAG |
BlueVAG |
Version 1.2 and older
Jeff's board has been modified in order to obtain a more compact and OBD connector integrated board (for more details and schematics please refer to https://www.planetfall.com/~jeff/obdii/).
|

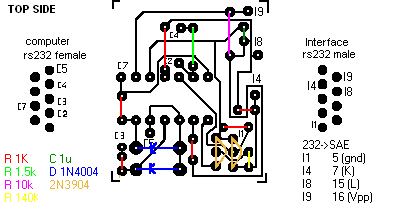

Board top side |
|
|
|
Board image(bottom side) to use for the production of the master to etch your board. The image is in true size and could be printed with the following settings W 28.61mm H 33.08mm |

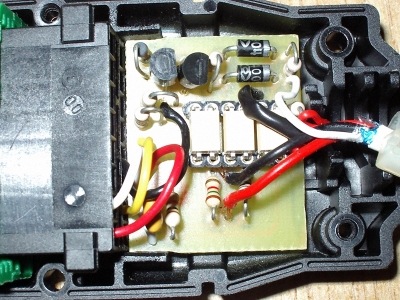

Here the obtained result! Wires are directly weld to the circuit.
|
IMPORTANT! |
If you connect your Jeff's interface (or that described here) with normal serial PDA<->PC syncro cable, you MUST insert a Null Modem adapter between two cables, otherwise you couldnt establish any unit communication! From version 1.1.1 VAG-Check supports Socket Serial CF adapter that doesn't need null-modem! |
Null Modem adapters are not all the same!
Table below shows serial 9 pins Null Modem pinouts that works.
|
|
9 Pin |
|
9 Pin |
|
|
TD (Transmit Data) |
|
|
|
RD (Receive Data) |
|
RD (Receive Data) |
|
|
|
TD (Transmit Data) |
|
RTS (Request To Send) |
|
|
|
CTS (Clear To Send) |
|
CTS (Clear To Send) |
|
|
|
RTS (Request To Send) |
|
SG (Signal Ground) |
|
|
|
SG (Signal Ground) |
|
DCD (Data Carrier
Detect) |
|
|
|
DTR (Data Terminal Ready) |
|
DTR (Data Terminal Ready) |
|
|
|
DCD (Data Carrier
Detect) |
|
FG (Frame Ground) |
|
X |
|
FG (Frame Ground) |
IMPORTANT!
The images on this page could be download free and they could be redistribuited
under GNU public license like the original created by Jeff Noxon
DISCLAIMER: ARlab is not liable or responsible to any person or entity
for any errors contained on this page, or for any special, incidental, or
consequential damage caused or alleged to be caused directly or indirectly by
the information contained on this page. Any application of the techniques,
ideas, and suggestions on this page is at the reader's sole discretion and
risk.
|
